AltRider Variable Height Suspension Linkage - HT23-6-2202

With AltRider's Variable Height Suspension Lowering Linkage customize your suspension to either lower or raise your seat height. Lower your seat 12 mm (0.4 in) 25 mm (1 in) or raise your seat 6 mm (0.24 in) or 19 mm (0.75 in) from factory height.

Lower your suspension to make your dirt bike easier and more comfortable to put both feet down during stops on uneven terrain. If you have a shorter inseam increase your comfort and confidence knowing you will be able to plant both feet on the ground. The variable height lowering linkage is an excellent way to improve your skill level set your height to where you're comfortable and raise the height as your skill level improves!

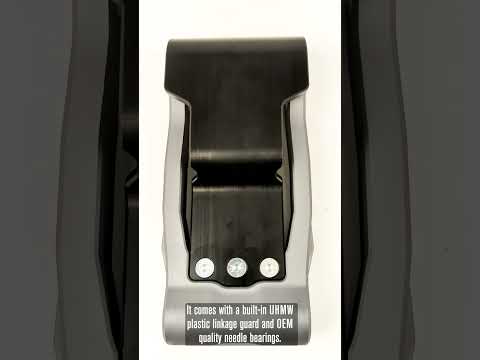

Robust 6 mm thick UHMW integrated linkage guard to protect the lower shock mount (removable with 3 x M6 flush mounted fasteners). The only offering with a built-in plastic guard doesn't transfer impact like other rigid guards and won't snag like aluminum will.

Adjustments are made with inserts that have the seat height setting laser etched on them. Each insert has 2 different holes and can rotated two different ways for a total four different ride heights. The inserts have the seat height adjustments etched on the inserts.

OEM grade needle bearings with integrated dust seals to provide OEM level ingress protection.

Features:

• Four adjustable heights with provided inserts 2 lowered heights and 2 raised heights
• Lower your seat 12 mm (0.4 in) 2 5 mm (1 in) from factory
• Raise your seat 6 mm (0.24 in) or 19 mm (0.75 in) from factory
• Seat height adjustments are etched on the inserts
• Built in UHMW plastic linkage guard to prevent damage
• Precision CNC machined aircraft grade billet aluminum with anodized finish
• Needle bearings with integrated dust seals to provide OEM level ingress protection
• Weighs only 3.2 oz (91 grams) more than OEM linkage

Note: Lowering the rear of your bike will change the geometry and handling of the bike. Please make necessary adjustments to your fork height in order to match the stock geometry or your riding preference.

The final change in seat height can vary with different bike setups. These variations include but are not limited to the amount of preload in your rear shock static sag tire size tire type and tire pressure. The seat height changes are provided as guide.
