Antigravity Small Case 8-Cell Lithium-Ion Battery - AG-801
$275.99

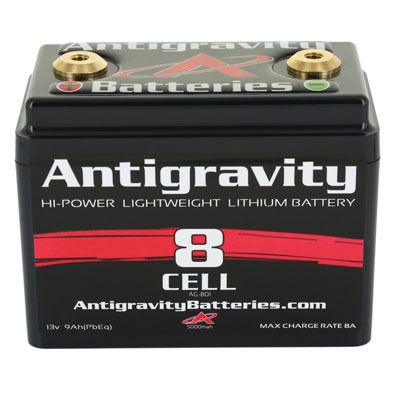

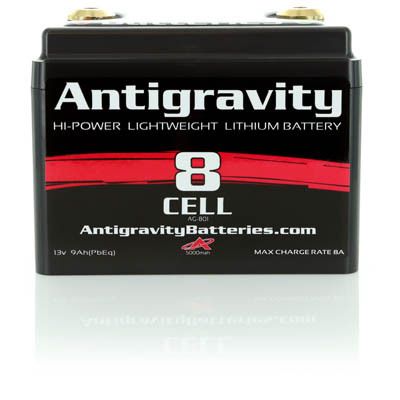

Antigravity Small Case 8-Cell Lithium-Ion Battery - AG-801 Item # 502227
Description
The Antigravity Batteries AG801 8-Cell Motorsports battery is one of the most popular models. It is an extremely powerful battery in a small package. At a very small 4.25" Length x 2.25" Depth and 3.75" Height (to the top of the terminals) this battery offers extreme power in the most compact size in Lithium Motorsport batteries. This battery is best used for applications where extreme weight loss and ultra compact size are desired and can be used for bikes from 600cc street use and 1200cc race use.
Features
- Adhesive backed foam included for easy installation.
- Most Compact of Lithium Motorsports Batteries.
- Ultra-Lightweight and High-Power Lithium Nano-Phosphate Motorsport Battery.
- Can hold a charge up to a year provided there are no "Parasitic Drains" (accessories that draw power when the bike is off... such as alarms, ECUs, iPods, GPS, heated grips, etc).
- Waterproof.
Best Uses
- Capable of every day use in bikes up to 750cc.
- Great for use in all enduro bikes used for trail riding up to 750cc.
- Race use for Enduro and MX electric start bikes up to 1000cc.
- Race and Track Day use in motors up to 1200cc. (High Performance motors should use Antigravity Batteries AG1201.)
- Custom builds like cafe racers or small bore customs up to 800cc. (Please note if you use older classic bikes from mid 1980s and earlier you should update the charging sytems to a modern voltage regulator.)
Technical Details
- 240 Cranking Amps - Cranking Amps are the power the battery has.
- 11 Amp Hours (Pb Eq)/ 5.5Ah (Actual)
- Can only be charged with lithium chargers, charging at a minimum rate of 4 Amps
Dimensions and Weight
- Weight: 0.7 Kg (1.56 lbs)
- Metric Size (LxWxH): 110 mm x 57 mm x 95 mm.
- USA Size (L x W x H): 4.25" x 2.25" x 3.75".
(Height is measured to the top of the terminal bolt heads)
Part Numbers for Antigravity Small Case 8-Cell Lithium-Ion Battery - AG-801
Videos
Videos
Reviews
Rated 5 out of
5
by
Flatcakes from
Amazing power and weight savings!
Bought as a replacement for my Yuasa YTX4L-BS in my 2014 KTM 250 XCFW. Dropped right in to the box and only had to use a little of the included foam to secure it. The brass terminals are top notch and the overall construction is premium. It's about 2 or so pounds lighter than the stock leaf acid. The cranking power is unbelievable now compared to stock. I have a dual sport set up with lots of accessories and lighting and this thing powers it all very well. If you're thinking about buying one, make sure you invest in a proper lithium charger too, like the Optimate. All in all extremely impressed with this battery and will be puttting nothing else into my bike from now on.
Date published: 2017-02-13
Rated 4 out of
5
by
Ripplerockracers from
Nice size and weight, more power than you would ex
I use this battery on 550cc Vintage Honda’s right up to 870cc Vintage Cafe Racers because of its small size and strong output. Only caution is to not overcharge max 13.6 volts or discharge under 9 volts as it will kill the battery .
Date published: 2019-11-18
Rated 5 out of
5
by
Bc 300 from
Super power
Petite modification à faire pour fitter dans mon kx 450 mais fonctionne très bien
Date published: 2022-10-12
Rated 5 out of
5
by
Dirt nap from
It’s a battery, it works.
Not much to say, I needed a battery and this one was recommended. Been in a month and no issues yet. Cranks the bike fast.
Date published: 2022-08-14
Rated 5 out of
5
by
Encrypted1024 from
Works Great!
I had a mid-range Lithium battery with 150 CCA. It was always slow to start and at times the Bendix wouldn't engage. After getting my top end redone it wouldn't engage at all any longer. I upgraded to this 240 CCA lithium battery and, wow. The bike starts before I hear the starter most times now. Plus it's lighter and smaller than the stock battery. It is among the higher priced batteries, but well worth the extra money if you are upgrading to Lithium. Don't waste your money on Lithiums with low CCA.
Date published: 2021-10-31
Rated 5 out of
5
by
None yet from
Perfect
Costs a bit but works awesome, half the size and weight of the original battery.
Date published: 2021-05-11
Rated 4 out of
5
by
J R M from
Most Powerful and Smallest Battery
Bought this battery for my dirt bike that has a long history of problematic starting. The bike does not have a kick starter but for a significant amount of money and effort, a kick starter can be installed. There are also 24V modifications that many with this bike have had good success with. In the end I decided to keep the 12V system, skip the kick starter, and just install bigger battery cables, a new more powerful starter, and a battery with the biggest amp rating that I could find that would still fit in the bikes battery compartment. The AG-801 Small Case Antigravity is it. All I can say is after 2 months, this thing is a significant improvement. However all this comes at a price. This is a very expensive battery. But for my application it was the cheapest path to reliable starting.
Date published: 2021-04-12
Rated 4 out of
5
by
Donaldo from
One of the most powerful batteries out there
Got this for my KTM freeride, which is notorious for hard electric starts. Works very well. EarthX is good too. Shorai not bad. Others I have tried just do not compare.
Date published: 2019-03-15
Questions
Does this battery have the BMS system?
No it does not.
Date published: 2020-02-17
What are the dimensions of this battery?
The dimensions and weight for item #AG-801 are listed in the product details. They are as follows:
Dimensions and Weight
METRIC WEIGHT: 0.7 Kg
USA WEIGHT: 1 lb 9 oz
METRIC SIZE (LxWxH): 110mm x 57mm x 95mm.
USA SIZE (LxWxH): 4.25" x 2.25" x 3.75".
(Height is measured to the top of the terminal bolt heads)
Date published: 2020-02-10
Can this battery be installed laying on its side?
Yes, I have mine on the side and never had an issue.
Date published: 2018-01-11
Can I run the bag 801 battery in a stock 1450cc twin cam motor
As per the manufacturer, no, only up to 750CC.
Date published: 2024-11-19
