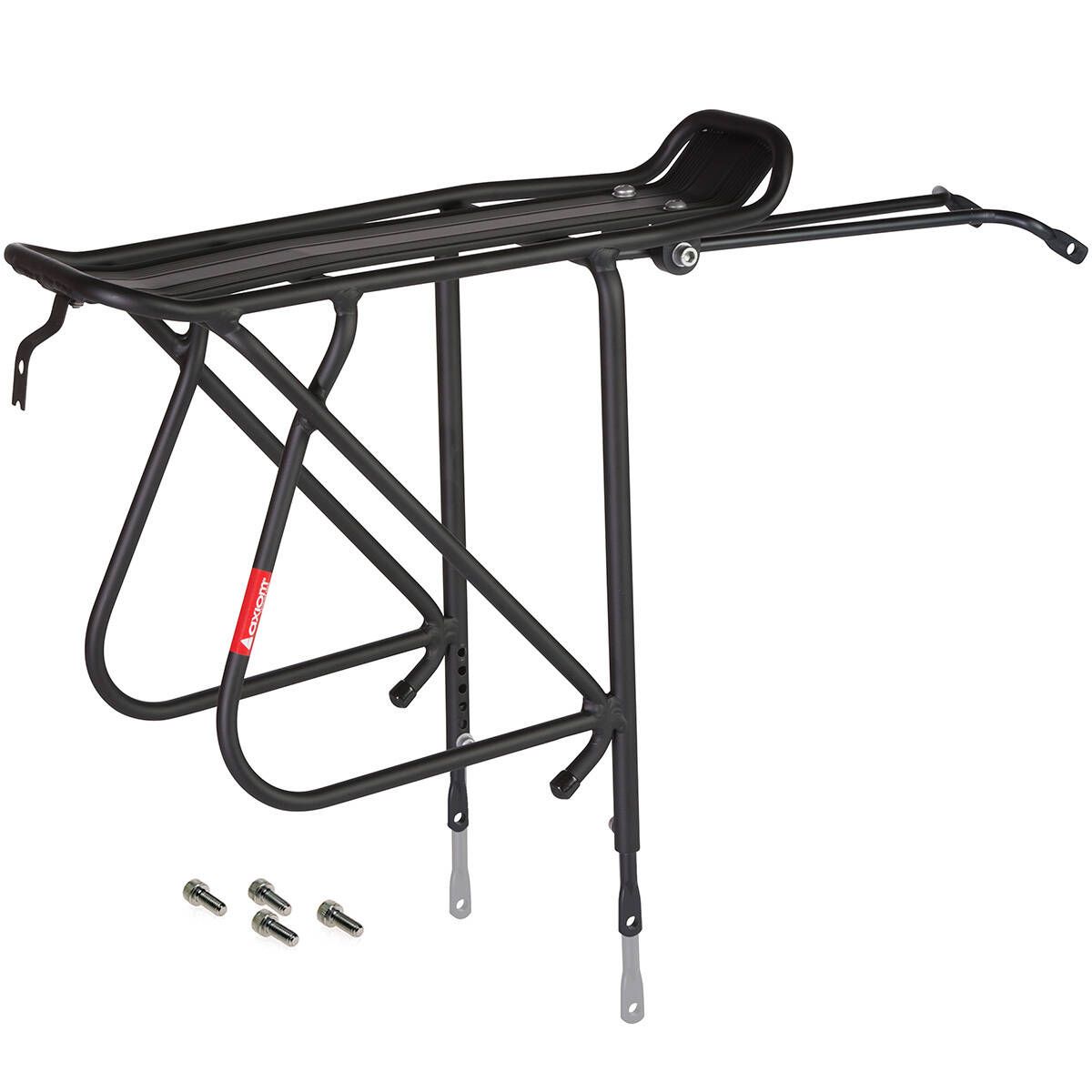

Axiom Journey Adjustable 2429 Rear Rack - 171272

All of the design benefits of the famous Journey rack, but with vertically adjustable stays that fit bicycles with wheels ranging from 24" to 29". A great problem-solver rack for bicycles with unique frame designs.

Construction:

• Hand-welded, tubular 10.2 mm/15 mm 6061 T6 aluminum

Mounting System:

• Extra-long (280 mm) extension arms are reinforced (bridged) to prevent failure found on other brands of racks, due to spreading and twisting
• Adjustable length lower stays

Features:

• Vertically adjustable stays maintain optimum load placement over rear wheel, while fitting a wide variety of wheel sizes and frame configurations
• Triple stay design has a sweepback frame that prevents pannier bags from bouncing into your wheel while you ride
• Suitable for frames with accommodations for racks (eyelets)
• Designed for modern bicycles by sitting your load further back over the wheel where it is supposed to sit
• Increased heel clearance
• Enhanced trunk bag / seat clearance improves trunk bag function, especially on smaller frames
• 280 mm Versalock® arms are long enough to fit even the smallest of bikes
• Versalock® arms can be DIY bent up to 30 degrees without reducing strength
• Double welded for extra strength and long-term durability
• Ample room for a full range of fender styles
• Reflector/light mount, Frame bolts included

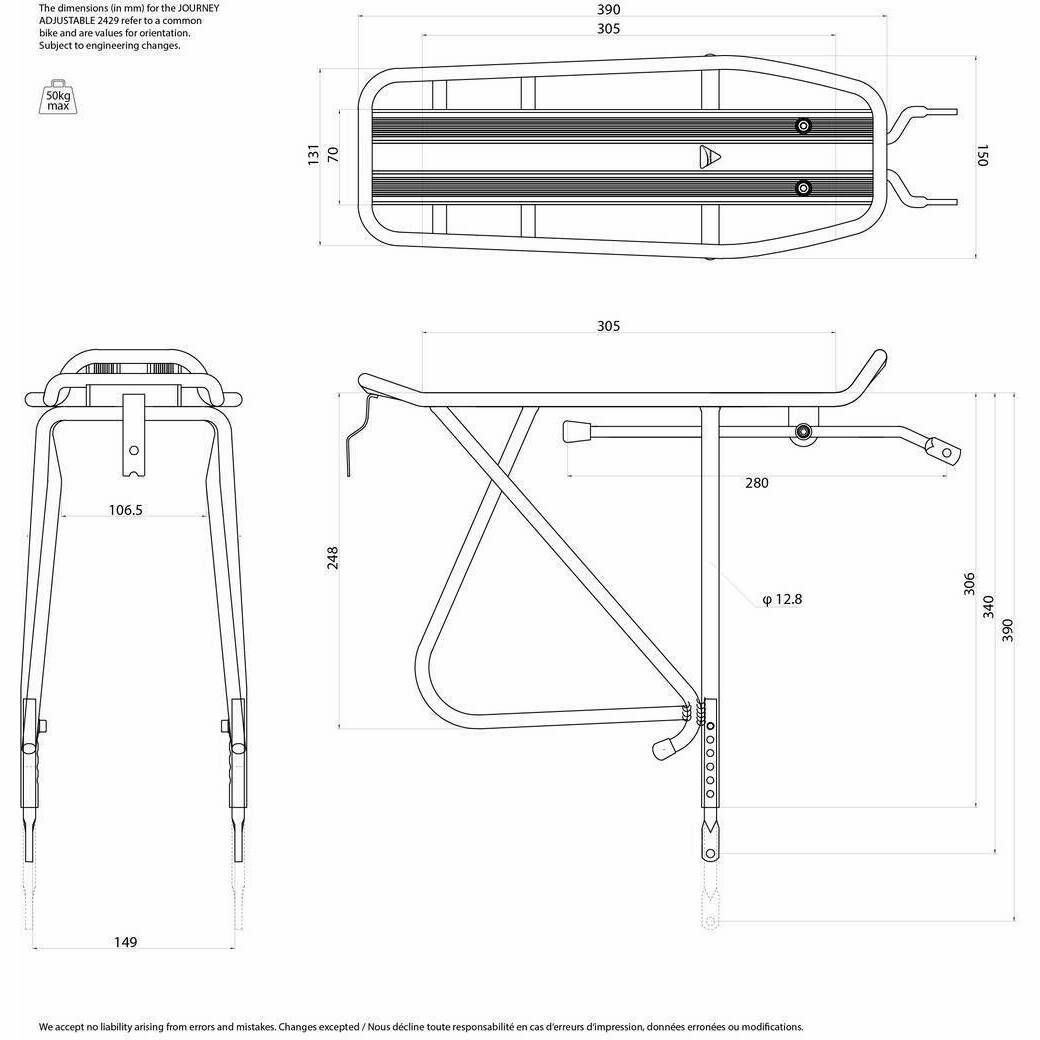

Specifications:

• Compatibility: 24", 26", 27", 27.5", 28", 29", 700c
• Stay length: 306 mm to 390 mm / 12" to 15.4"
• Platform size: 390 x 150 mm / 15.4" x 5.9"
• Weight: 786 g / 1.73 lbs (including hardware)
• Capacity: 50 kg / 110 lbs

User Manual.
