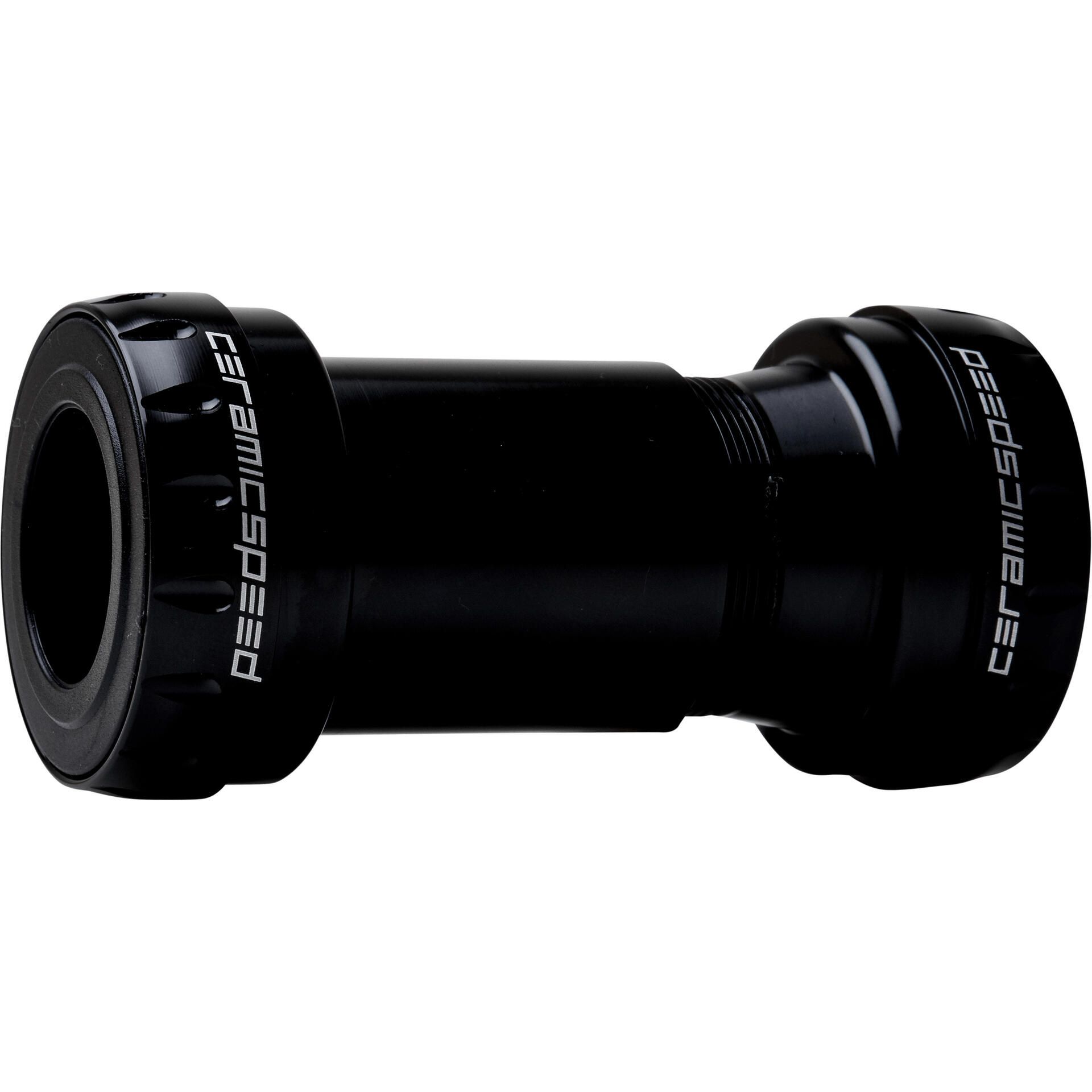

CeramicSpeed Shimano BB30 Bottom Bracket - 101349

The BB30 standard opened up design possibilities for frames. Adapting it for Shimano cranks takes a special machined aluminum threaded bottom bracket that threads into itself. CeramicSpeed bottom brackets are finished with CeramicSpeed Bearings.

Features:

• Lowest friction
• Optimized power transfer
• Longest Product Lifetime
• High resistance to contamination and corrosion
• Grade 3 Silicon Nitride balls
• Hardened races
• Reinforced polyamide cage and non-contact seals
• Hand built in Denmark
• Not intended for BBRight use
• 4 year warranty

Specifications:

• BB Type: BB30 68 mm
• BB Shell Width: 68 mm/73 mm
• Bottom Bracket Shell I.D.: 42 mm
• Spindle Length: 30 mm
• Spindle Interface Type: Shimano Hollowtech II, FSA MegaExo, FSA MegaExo Light, RaceFace EXI
• Net weight: 109 g
• Gross Weight: 220 g
• Color: Black

Included:

• (1) Bottom bracket with bearings installed
• (2) Dust covers installed
• All Round Grease
• Decal

Compatibility (2.12 MB)

Maintenance Guide
