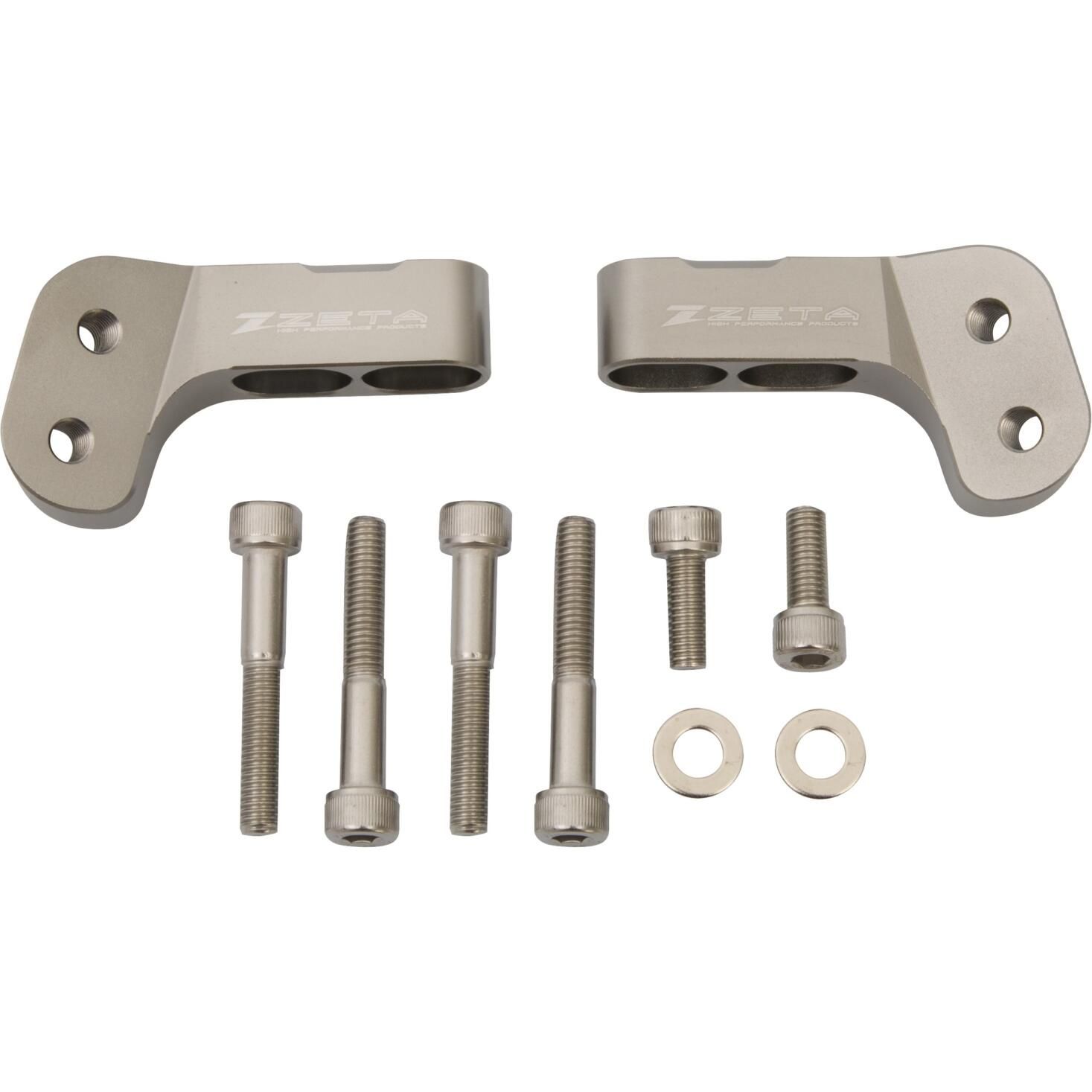

Zeta Handguard Mount Kit Item # 1019898
Description
Features:
- Top triple clamp rigid mount kit for Armor hand guards provides more durable fitting
- Prevents rotation of hand guards, protects your control levers and throttle in the event of a fall
- Can be used on motorcycles with the top clamp fork bolts attached from the side or front
- Made of CNC machined A7009 aluminum, hard anodized titanium color with laser printed logo
- Comes with special installation bolts
Note: Front-type mount can not be used on top clamps with the fork bolts attached from the back. Hand guard modification may be needed to attach some handlebar bends.
Part Numbers for Zeta Handguard Mount Kit
Reviews
Rated 5 out of
5
by
cac2244 from
Great addition on KLX300
It cleans up the handlebar so nice, instead of having the barkbusters clamps cluttering the handlebar.
Fits well on the KLX300 (2024) and is not an issue maintaining the clamp holding the front break line on the left side (for easier access, remove the headlamp, just by removing the two screws on the side and pull down on the assembly, as it's only press clamped once you remove the two side bolts).
The hardware for the KLX 300, especially the tripleclamp bolts, are too long, so I just went to home depot and got some zinc plated hex bolts with washers M8 1.25 x 50mm, and for the handguard bracket, i just used the barkbuster bolt and a washer and it gets flush behind the bracket. For the triple clamp bolts, I ordered some Kawi M8x50mm on Fortnine assuming they will be stainless steel, but for now, all is good. The tripleclamp (higher) bolt torque is 15 ft-lb as per manual.
I attach photos of the before and after.
Date published: 2025-04-10
Rated 3 out of
5
by
Doug from
Almost universal
I just installed a set of these on my CRF 250L. I found that the extended bolts that thread into the triple clamps did not have enough thread on them. I had to use a tap and die kit to ad about 3/8" more thread to the bolts. After that everything worked fine.
Date published: 2024-07-16
