Description
Erickson Galvanized Dock Ring - with a bolt-on base (2000 lbs.). Features: The mounting plate allows you to easily mount this ring to a dock The zinc plated finish protects against corrosion, extending the life of the dock ring This dock ring/bolt-on is very versatile with different hook types Sold...

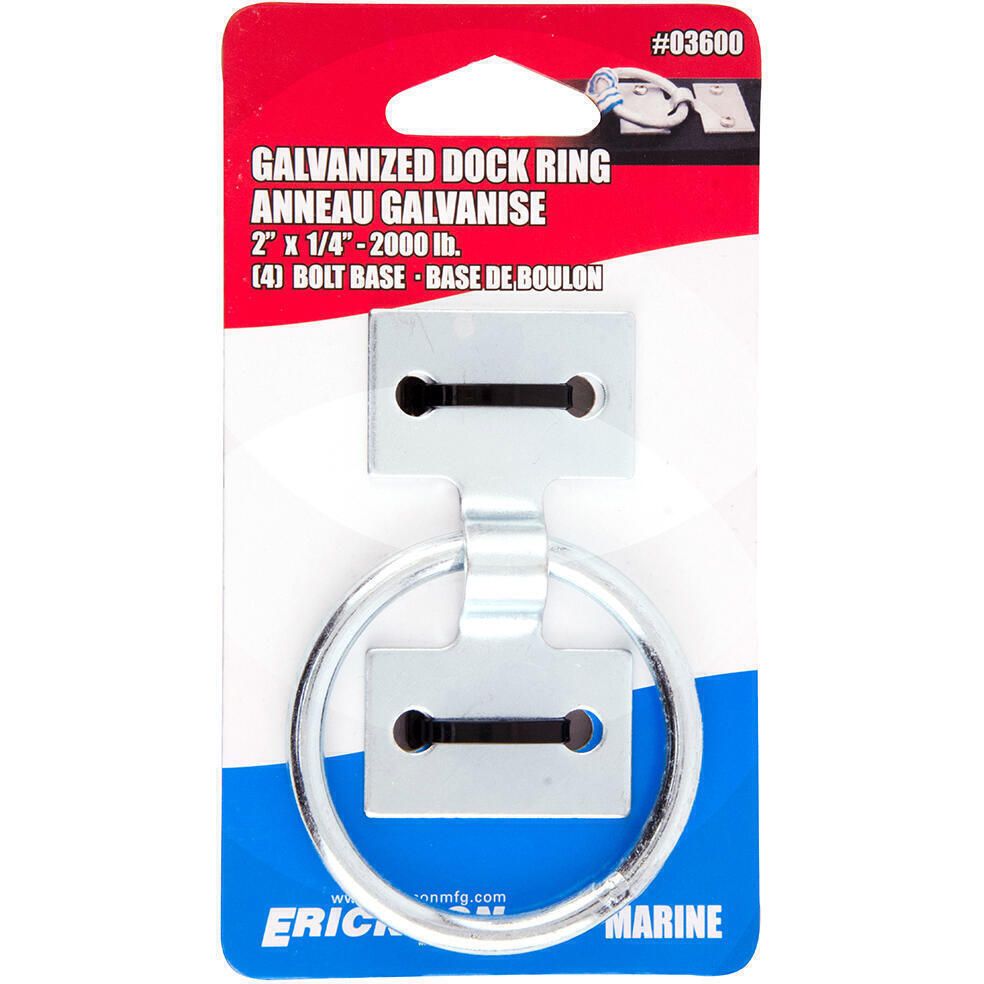

Erickson Galvanized Dock Ring - 2000 lbs - 3600 Item # 557066
Description
Erickson Galvanized Dock Ring - with a bolt-on base (2000 lbs.).
Features:
- The mounting plate allows you to easily mount this ring to a dock
- The zinc plated finish protects against corrosion, extending the life of the dock ring
- This dock ring/bolt-on is very versatile with different hook types
- Sold individually
Specifications:
- Ring:
- Diameter: 2.5" (outside), 2" (inside)
- Thickness: 0.25"
- Base Plate:
- Dimensions: 3" (L) x 1.6" (W), with 4 Hole bolt base
- Mount Hole Dimensions: 0.25" holes on 1" center
- Finish: Zinc plated
- Weight Capacity: 2,000 lbs. Max breaking strength
Note: Preferably use with grade 5 bolts or better for securing the anchor (Not Included).
