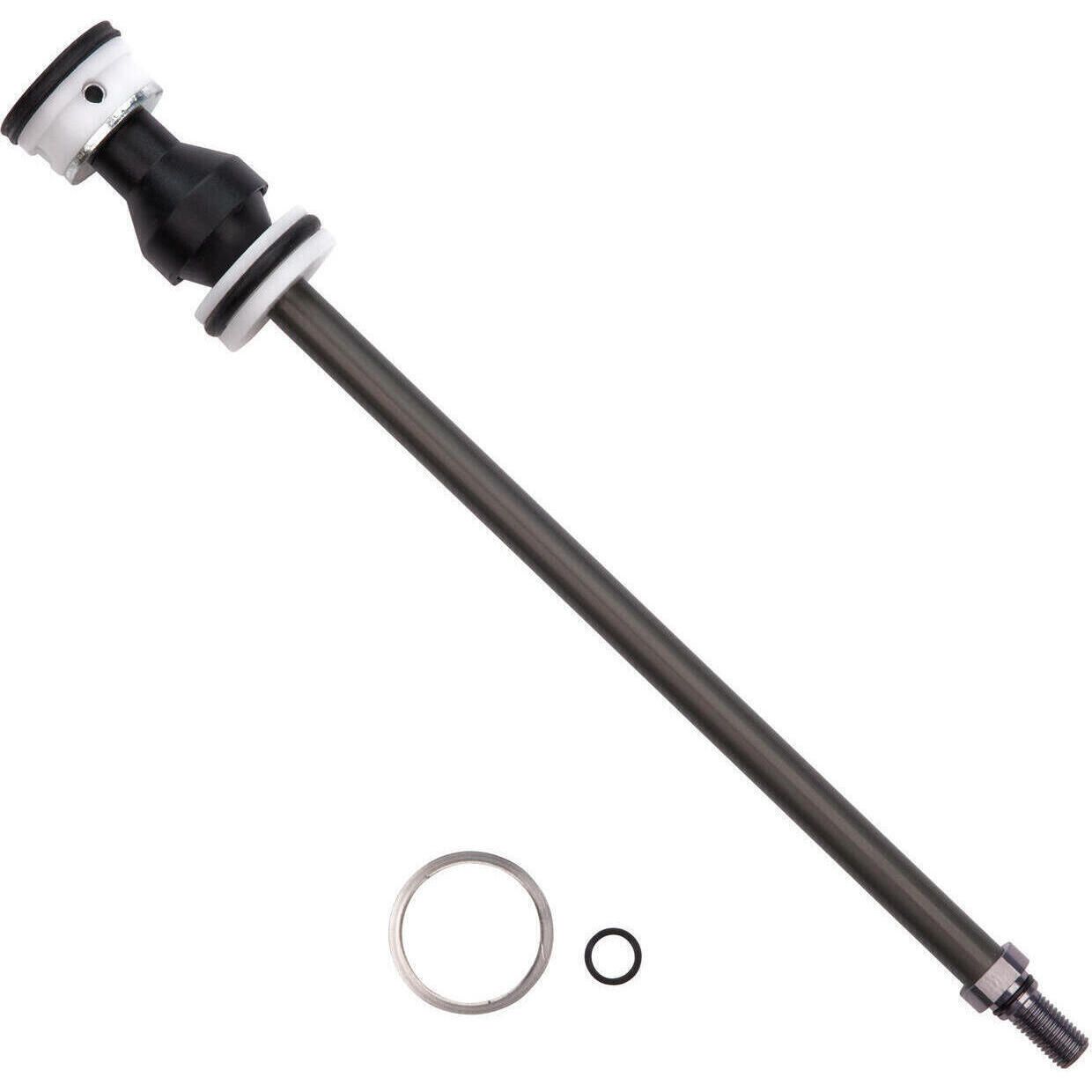

Fox Fork Air Shaft Assembly - 2019

Fox Factory Air Shaft Replacement for your favorite 2019 Fox MTB Forks.

Change the Travel of your Fork easily with these Air Shaft Assembly.

Features:

• Includes: Air Shaft, Negative Plate (Base Section), Air Piston, Crush Washer, Foot Nut
• Seals are pre-installed, ready to replace the old air shaft

Options:

• Fork Model: for 32/34/36 mm Stanchion, 2019
• Fork Series:
  • Rhythm: The OEM Fork
  • FS/PS/PSE: For Factory/Performance/Performance Elite Forks
  • FS/PS Step-Cast: For Factory/Performance Forks, with Step-Cast Material

Air Shaft Spring Specific Model Name:

• 34 - Rhythm: SPD-PED-ELEC
• 36 - Rhythm: 1.275 Bore - No Spacer
• 34 - FS/PS/PSE: FLOAT LC NA2 - 1.214 Bore - Al NP
• 36 - FS/PS/PSE: FLOAT LC NA2 - 1.287 Bore - TO Hat
• 32 - FS/PS Step-Cast: FLOAT LC NA2 - 1.132 Bore - Al NP
• 34 - FS/PS Step-Cast: FLOAT LC NA2 - 1.214 Bore - Al NP

Note: Please note that some Air Shafts Travel are specific with the Wheel Size linked to your Fork Suspension (27.5" or 29" wheel).
