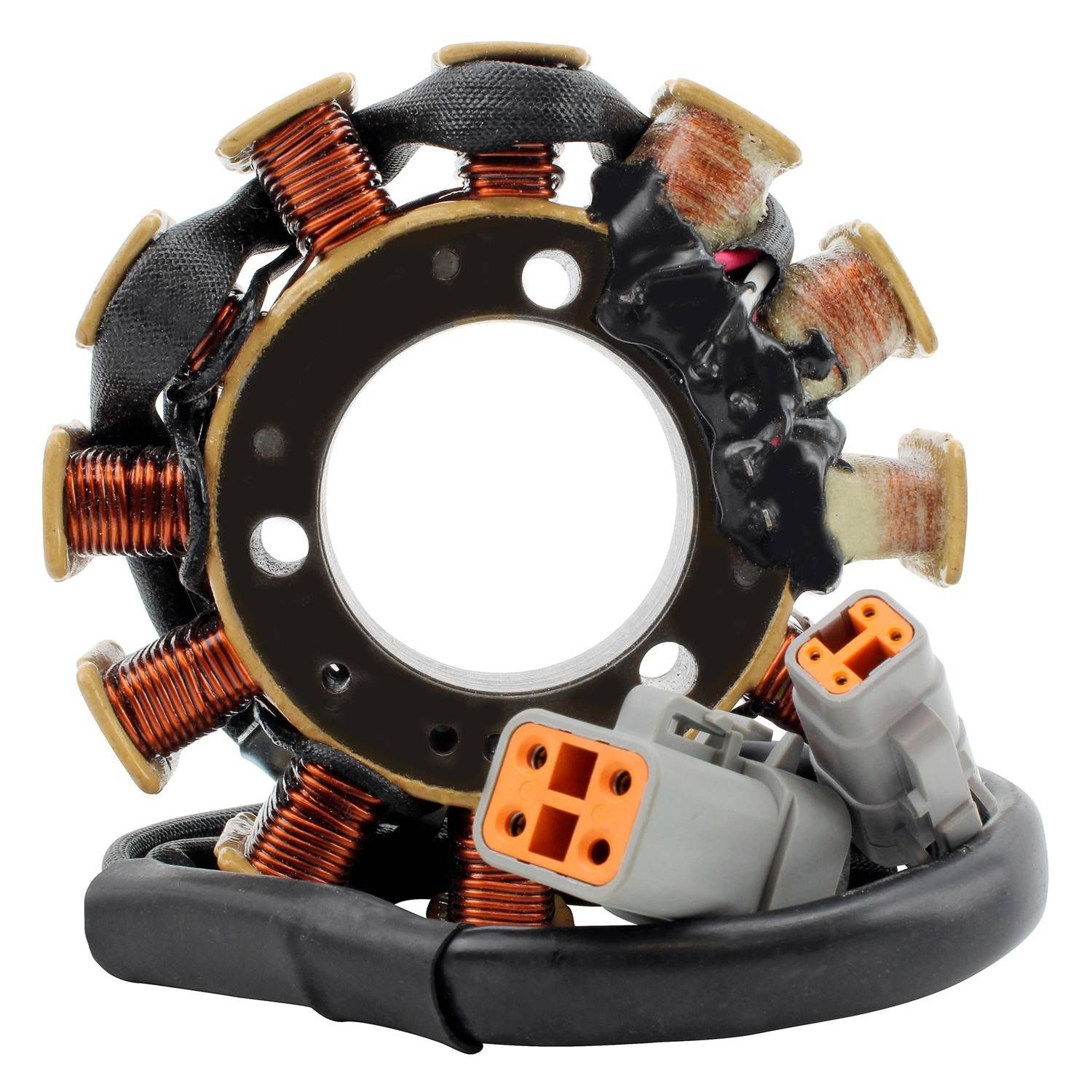

Kimpex HD Stator - 225747 | Ski-Doo MX Z 440 X 2003-2005
Item: #830151 | Part Number: 225747$306.89
Description
Direct replacement to your original unit Plug-and-play, direct fit, easy installation Highest grade lamination materials Highest grade copper windings, resistant to 200 degrees Celsius Connector included Rubber grommet included Specifications Internal Diameter(mm): 40 External Diameter(mm): 103 Thickness(mm): 30 Number of Wires: 7 Number of Connectors: 2 Number of Terminals: 7...
Kimpex HD Stator - 225747 | Ski-Doo MX Z 440 X 2003-2005 Item # 830151
Description
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
Specifications
- Internal Diameter(mm): 40
- External Diameter(mm): 103
- Thickness(mm): 30
- Number of Wires: 7
- Number of Connectors: 2
- Number of Terminals: 7
OEM numbers:
- 410922952
- 410922967
Part Numbers for Kimpex HD Stator - 225747 | Ski-Doo MX Z 440 X 2003-2005
Fitment for Parts Kimpex HD Stator - 225747 | Ski-Doo MX Z 440 X 2003-2005
This part fits the following vehicles:
