Description
Features: You must re-install your original grommet and the new connector Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install Highest grade lamination materials Highest grade copper windings, resistant to 200 degrees Celsius All product shipped are tested Specifications:...

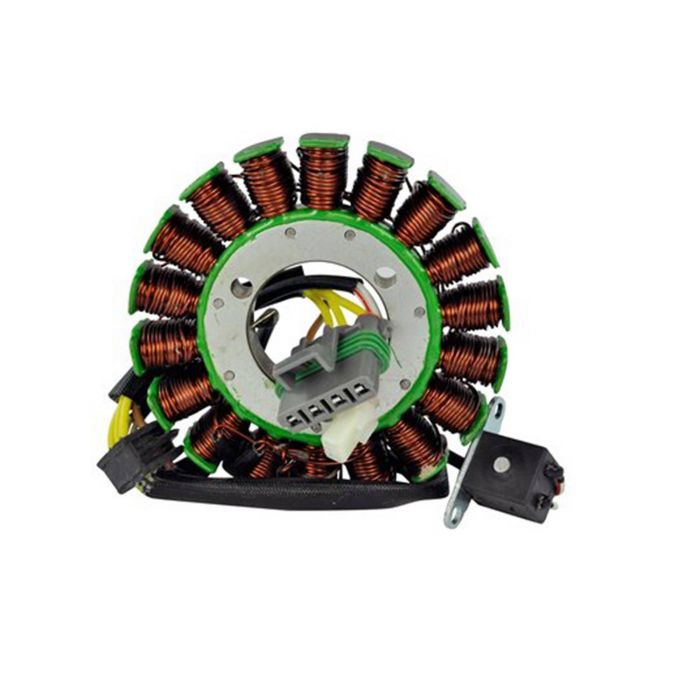

Kimpex HD Stator - 285642 Item # 807958
Description
Features:
- You must re-install your original grommet and the new connector
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- All product shipped are tested
Specifications:
- Internal Diamter(mm): 41
- External Diamter(mm):114
- Thickness(mm): 14
- Number of wires: 6
- Number of Connectors: 2
- Number of Terminals: 7
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
OEM numbers:
- 3089579
- 3089906
- 3089959
- 3090081
Part Numbers for Kimpex HD Stator - 285642
Fitment for Parts Kimpex HD Stator - 285642
This part fits the following vehicles:
