Kolpin UTV Switchblade Snow Plow System - 17-5000

UTV Kolpin Switchblade™ Snow Plow System is a complete Plow-in-a-Box, minus a Winch. Robust square tube steel chassis with strategically placed reinforcements.

Features:

• Complete Plow-in-a-Box, minus Winch
• Stamped steel blade technology adjusts to either 60" or 72" width Robust square tube steel chassis with strategically placed reinforcements
• 5-position blade angle Easy to assemble and install universal under-body mount
• Requires winch (sold separately) Assembles in under 1 hour
• Box fits in the back of your vehicle for easy transport
• At maximum blade angle position, the snow cutting widths are 54.3" and 65.1" for the 60" and 72" blade widths respectively

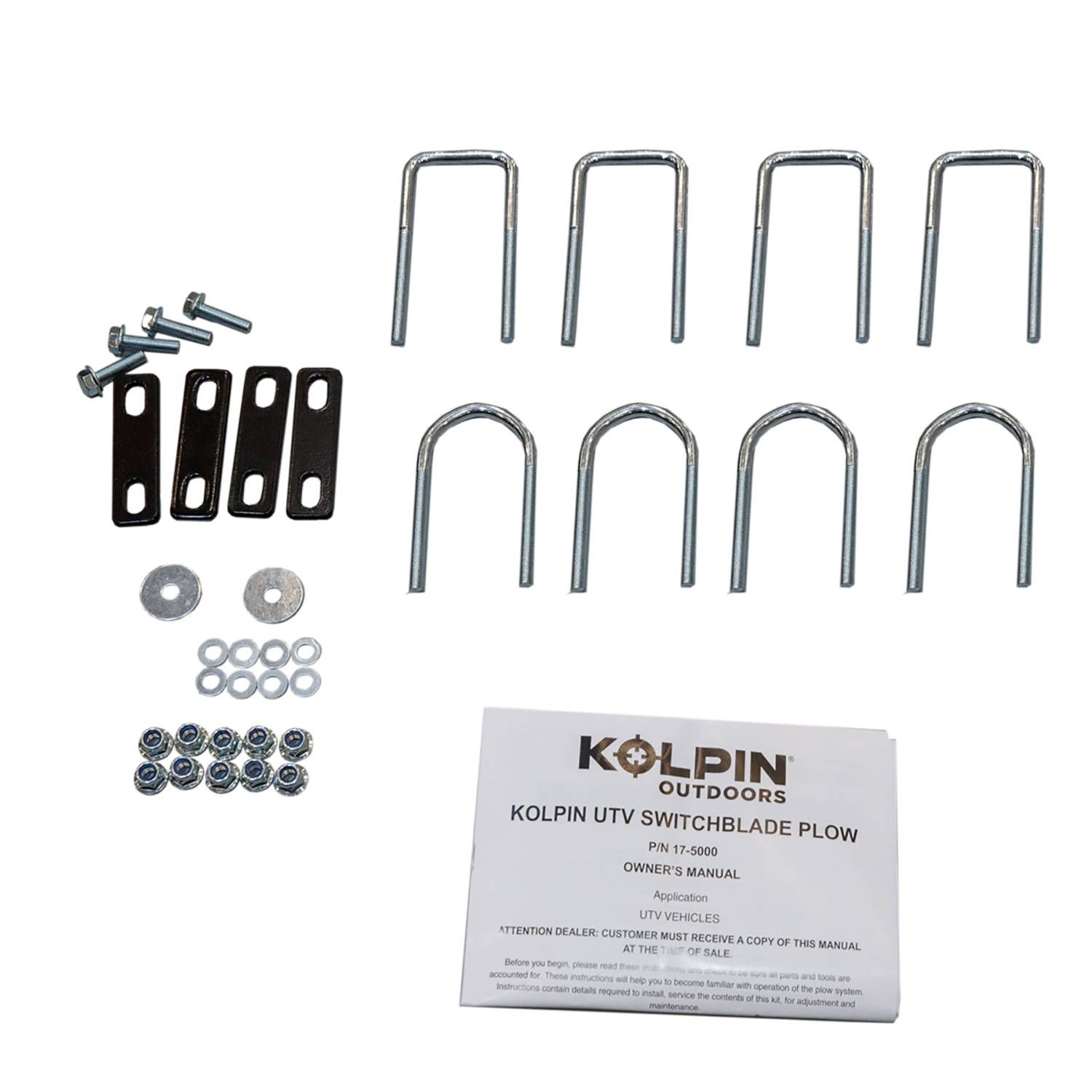

• Included Mounting Hardware: (1) UTV Universal Mount Weldment, (1) Unviersal Mount LH Bracket, (1) Universal Mount RH Bracket, (4) Square U-Bolt, Zinc Plated, M8-1.25 x 50 x 110, (4) Round U-Bolt, Zinc Plated, M8-1.25 x 40 x 96, (4) Spacer Plate, (16) Flange Locknut, Zinc Plated, M8-1.25, (4) Hex Flange Bolt, Zinc Plated, M8-1.25 x 30mm LG, (4) Flat Washer, Zinc Plated, M8
• Product is designed to fit most vehicles, however Kolpin does not guarantee vehicle fitment for all vehicles. See Kolpin.com for the latest vehicle fitment. Always refer to your vehicle's OEM operator manual to understand warnings and fitment, which takes precedence over Kolpin product instructions and fitment.

Installation Instructions (5.79 MB)
