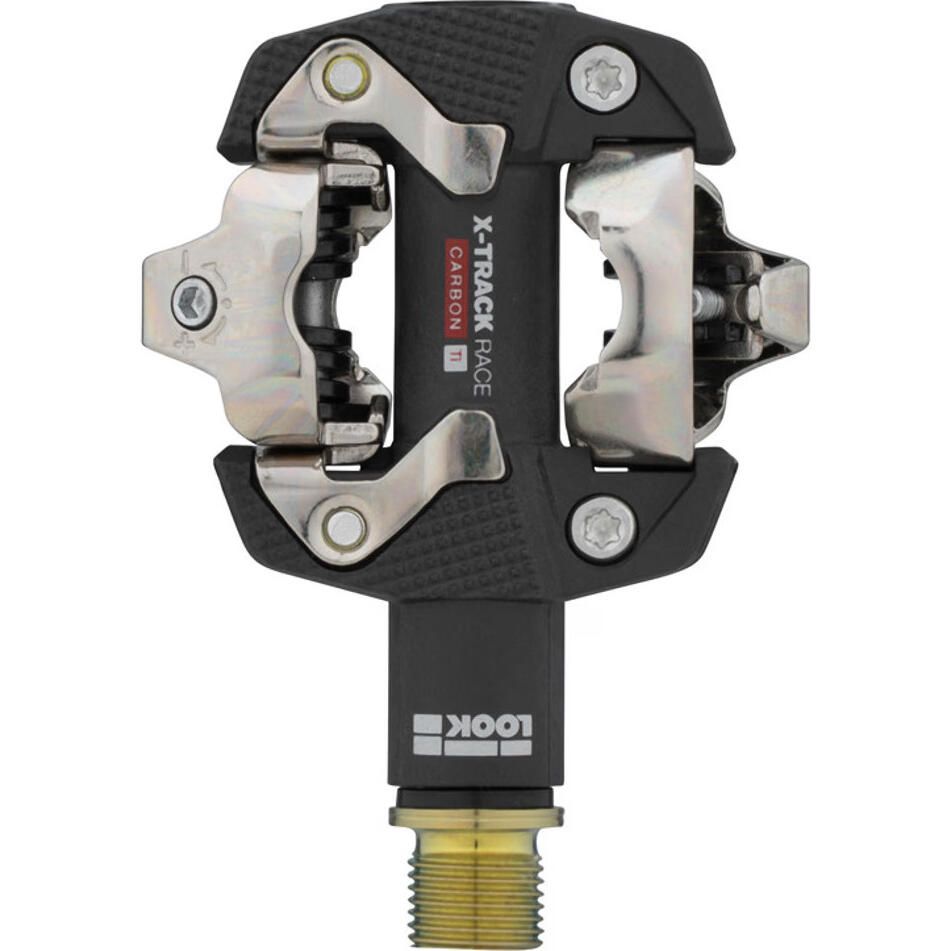

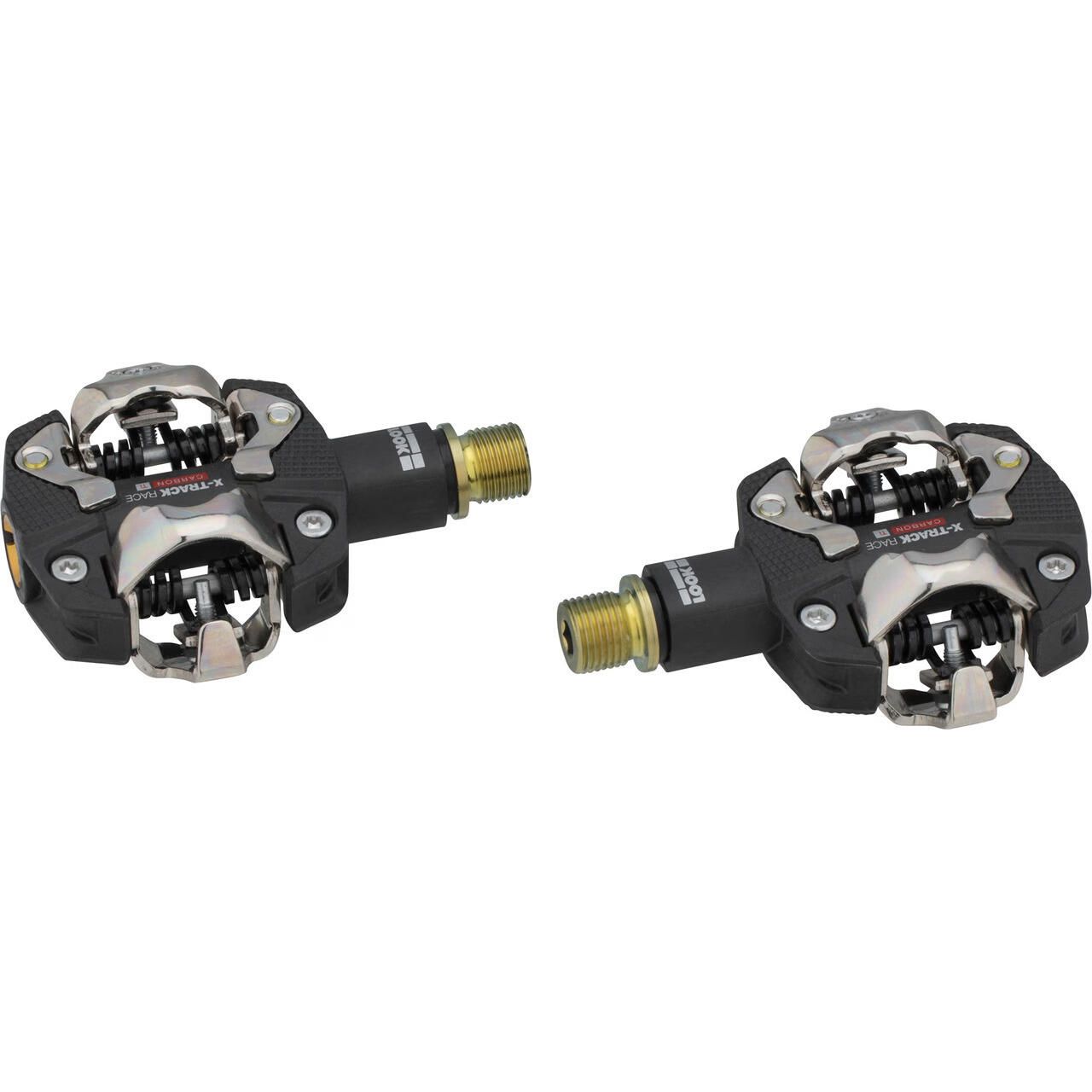

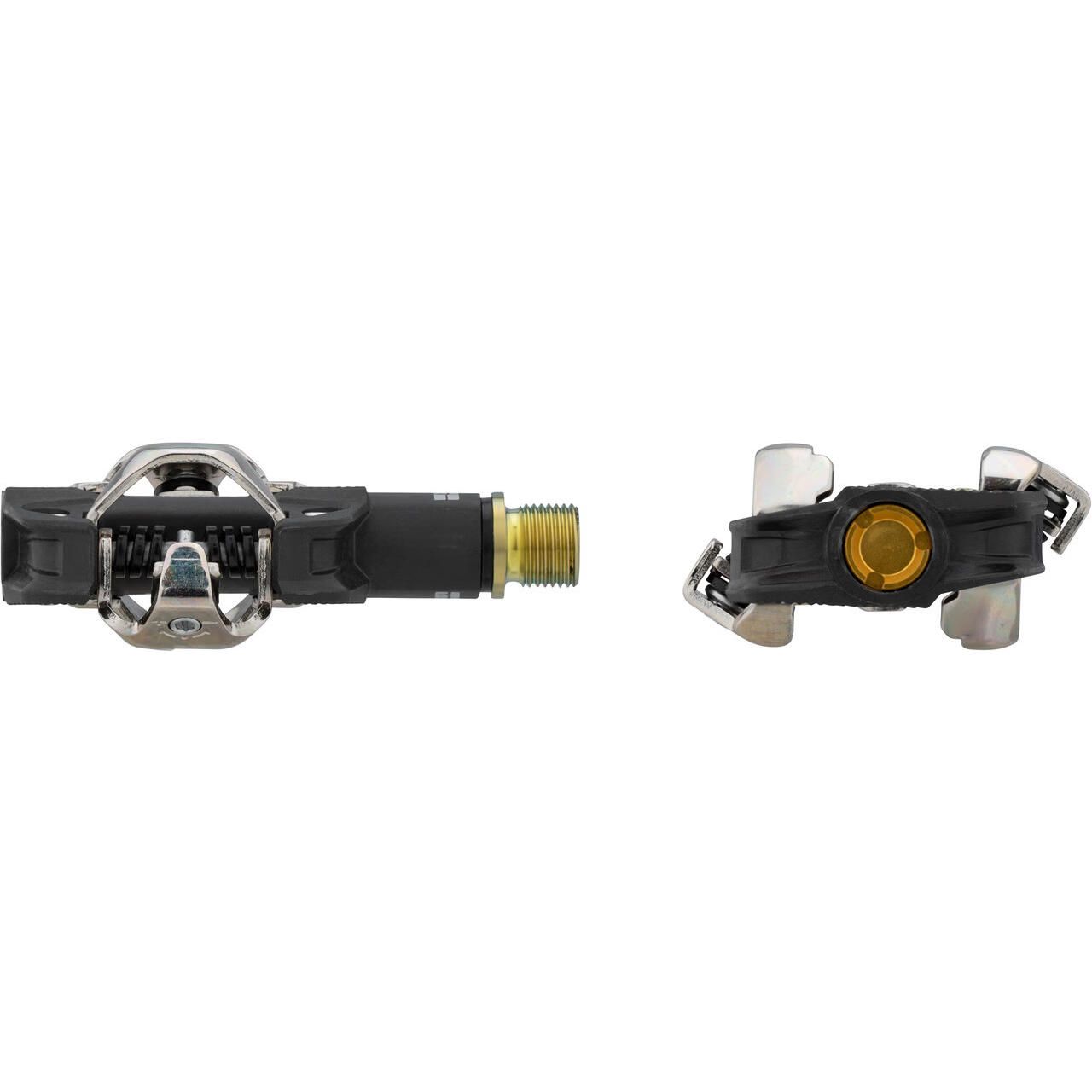

Look X-Track Race Carbon Ti MTB Pedals - 00018224

Every second is precious in a race, and you can't afford to lose even a fraction of one. The X-Track Race Carbon Ti pedals are specifically created for the most unforgiving courses. The geometry of the mechanism is designed for easy engagement in all conditions, evacuating any elements which may get in the way such as mud or sand. The titanium body offers a 515 mm² contact area, while the titanium axle ensures the pedal is stiff and light: a mere 145 grams underfoot.

Specifications:

• Colour: Black
• Spindle
  • Material: Titanium
  • Thread Diameter: 9/16"
• Body & Platform
  • Technology: X-TRACK
  • Body Material: Carbon
  • Platform Width: 60 mm
  • Platform Area: 515 mm²
  • Total Stack Height (pedal + cleat): 16.8 mm (10.7 + 6.1 mm)
  • Q Factor: 53 mm
• Retention & Cleats
  • Retention: 6 to 14

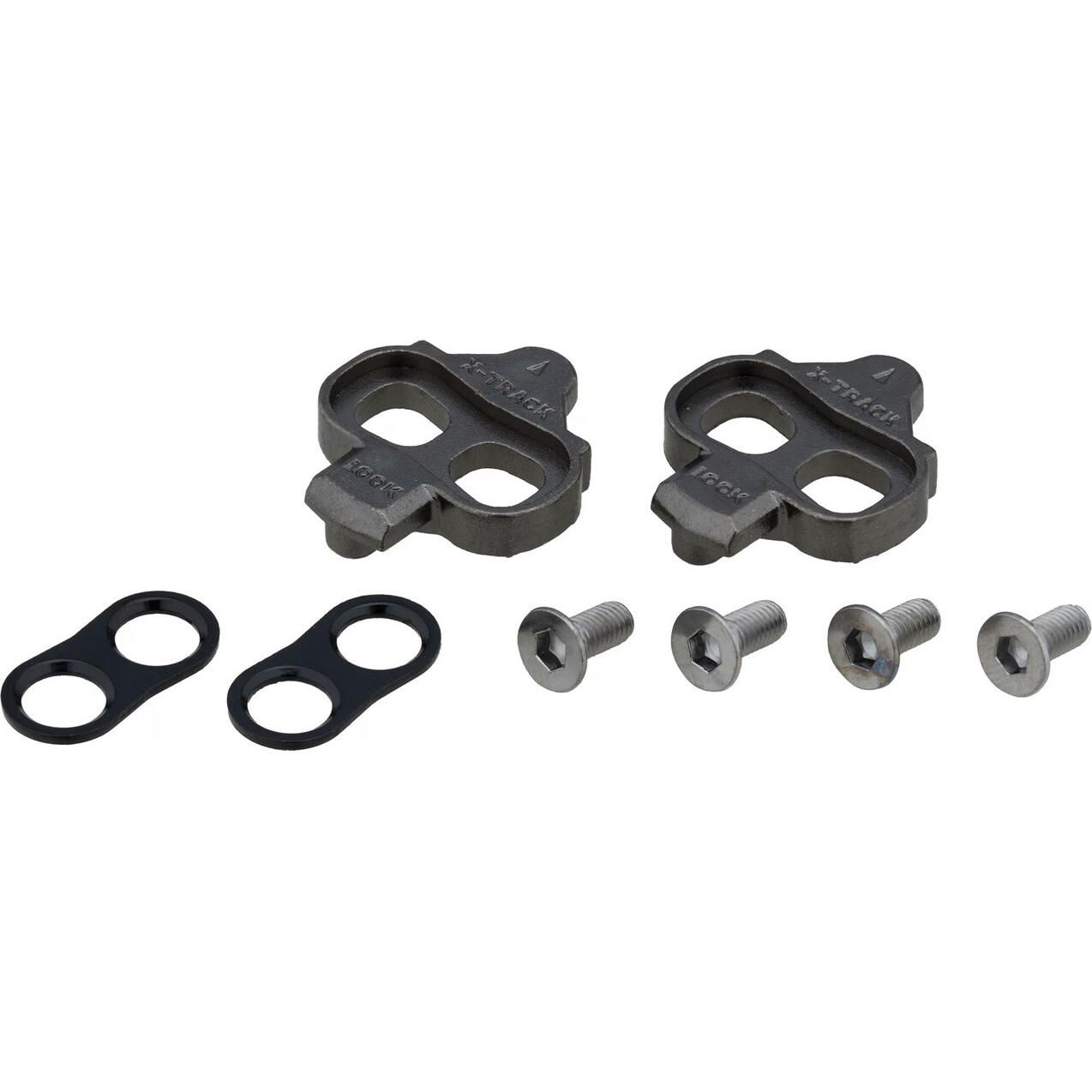

  • Cleats: Standard cleat included (easy cleat available, sold separately)
  • Cleats Standard: SPD compatible
  • Float angle: 6 deg.
  • Release angle: 13 deg.
• Weights
  • Pedal: 145 g
  • Cleats: 50 g
  • Total Weight (pedals + cleats): 340 g
