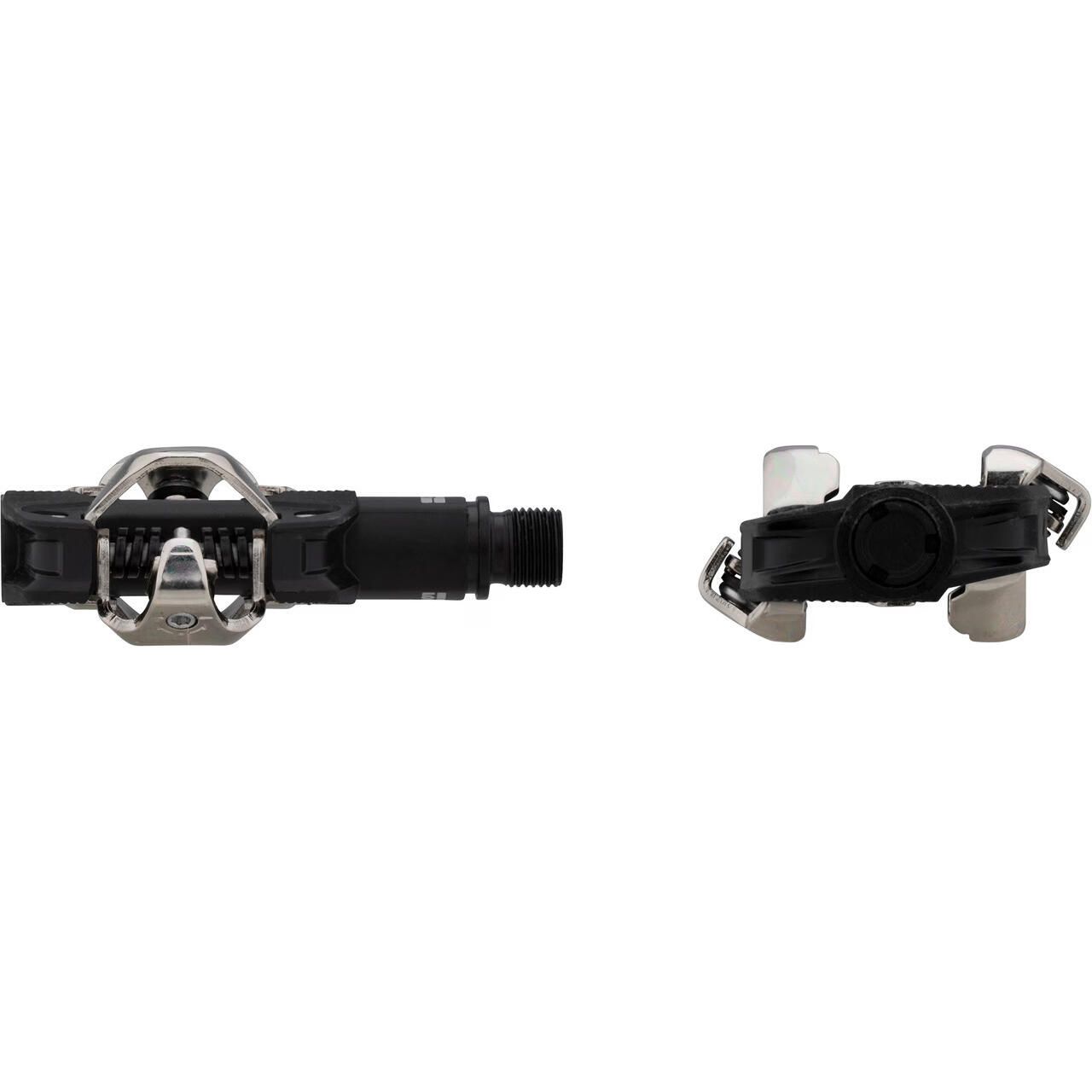

Look X-Track Race MTB Pedals - 00018222

The X-Track Race shares its design with the Carbon and Ti models, offering a composite body and Chromoly+ axle for optimal stiffness during your rides. The SPD mechanism functions reliably even in the most extreme conditions, evacuating any elements which may get caught under your shoes.

Specifications:

• Colour: Black
• Spindle
  • Material: Chromoly+
  • Thread Diameter: 9/16"
• Body & Platform
  • Technology: X-TRACK
  • Body Material: Composite
  • Platform Width: 60 mm
  • Platform Area: 515 mm²
  • Total Stack Height (pedal + cleat): 16.8 mm (10.7 + 6.1 mm)
  • Q Factor: 53 mm
• Retention & Cleats
  • Retention: 6 to 14

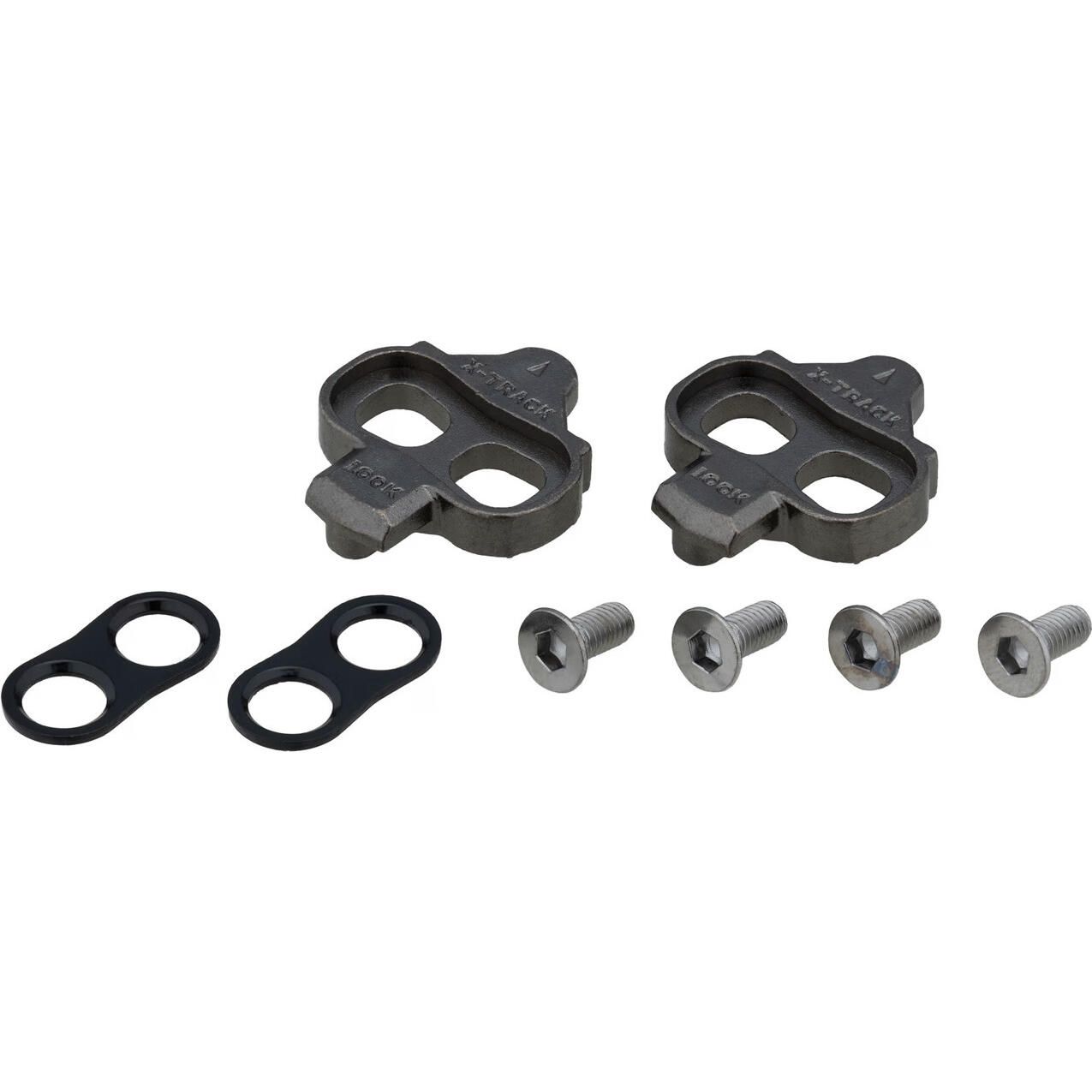

  • Cleats: Standard cleat included (easy cleat available, sold separately)
  • Cleats Standard: SPD compatible
  • Float angle: 6 deg.
  • Release angle: 13 deg.
• Weights
  • Pedal: 182 g
  • Cleats: 50 g
  • Total Weight (pedals + cleats): 414 g
