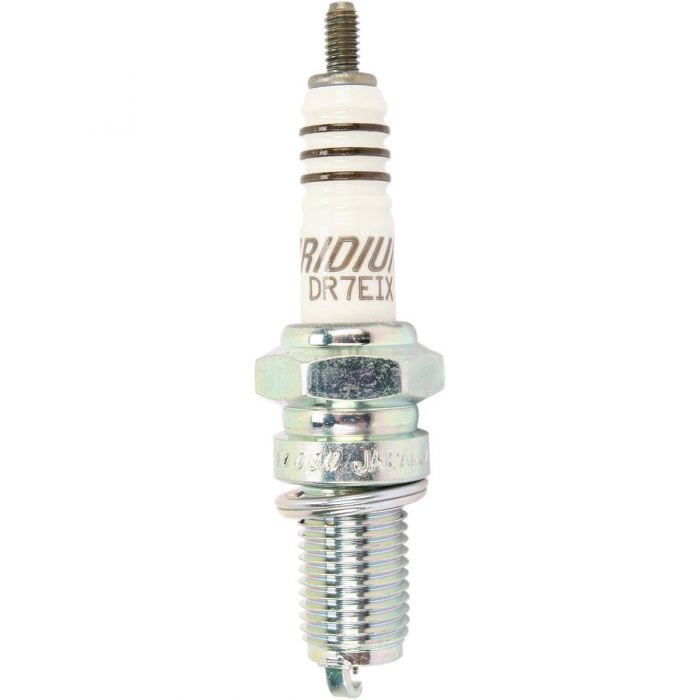

NGK Iridium IX Spark Plug 5686 - DR7EIX Item # 144153
Description
NGK's IX Iridium Series Plugs were Designed Specifically for the Performance Enthusiast.
- Fine Wire Center Electrode Ensures High Durability and a Consistently Stable Spark
- Iridium Alloy has an Extremely High Melting Point, Perfect for Today's High-Tech, High Performance Engines
- Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
- Corrugated Ribs Prevent Flashover
- Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
- Copper Core Aids in Heat Removal
- Triple Seals Prevent Leakage
- Sold individually
Features
- 0.6mm Center Electrode
- Enhanced Ignitability
- Trivalent Metal Plating
Shell
- Thread Size: 12mm
- Thread Pitch: 1.25mm
- Seat Type: Gasket
- Resistor: Yes
- Resistor Value: 5K Ohm
- Reach: 19mm (3/4")
- Hex Size: 18mm
- Terminal Type: Threaded Stud
- Overall Height: ISO
- Gap:. 031" (0.8mm)
Center Electrode
- Material: Iridium
- Type: Fine Wire
- Size: 0.6mm
- Projection: Non-Projected
Ground Electrode
- Material: Nickel
- Type: Standard
- Shape: Taper Cut
- Quantity: 1
Specifications
- Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
- Brand: NGK
- Heat Range: 7
- Longevity: 40-50k
Part Numbers for NGK Iridium IX Spark Plug 5686 - DR7EIX
Fitment for Parts NGK Iridium IX Spark Plug 5686 - DR7EIX
This part fits the following vehicles:
