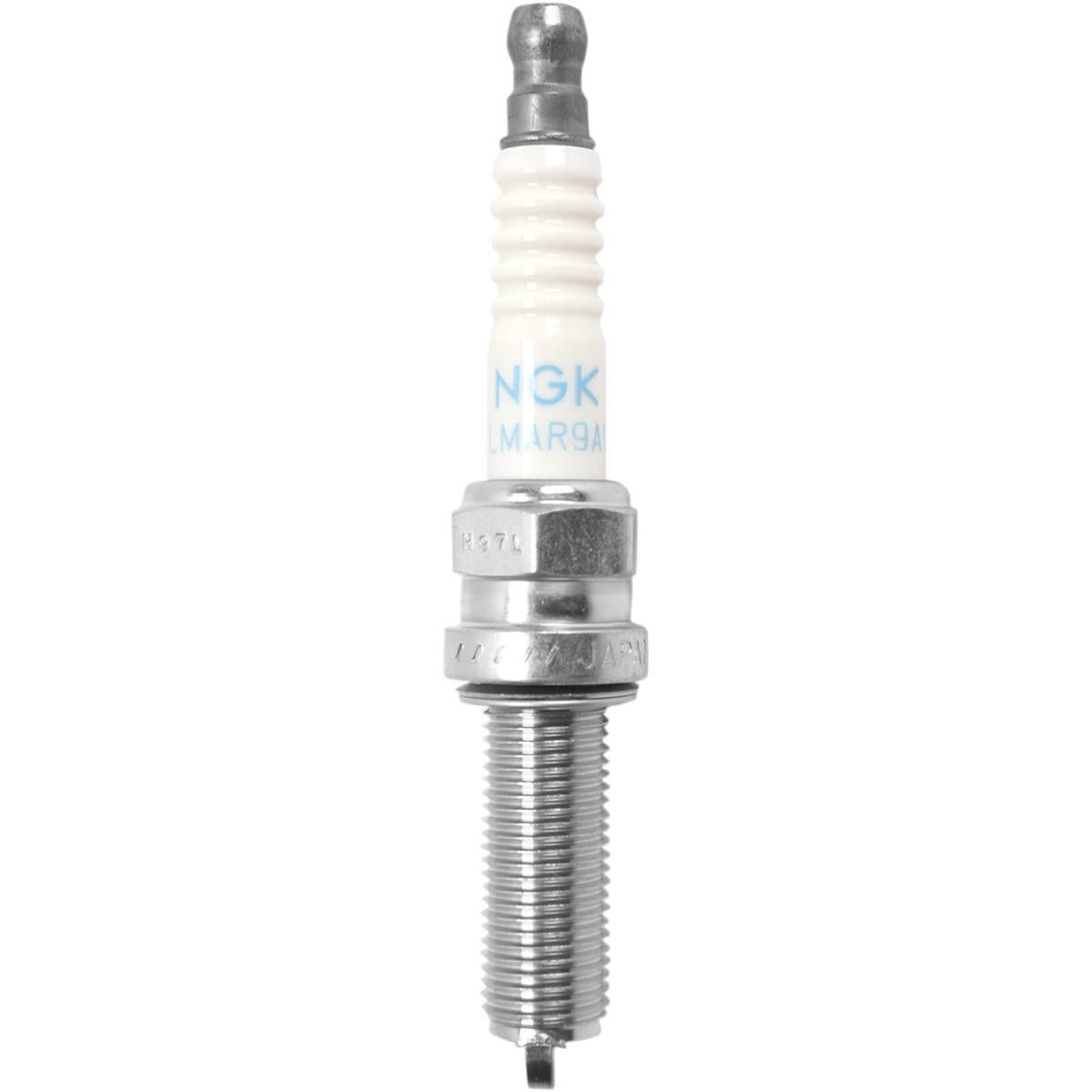

NGK 6213 SILMAR9A9S Laser Iridium Plug
NGK's Laser Iridium Spark Plugs Provide Superior Ignitability and Long Service Life.

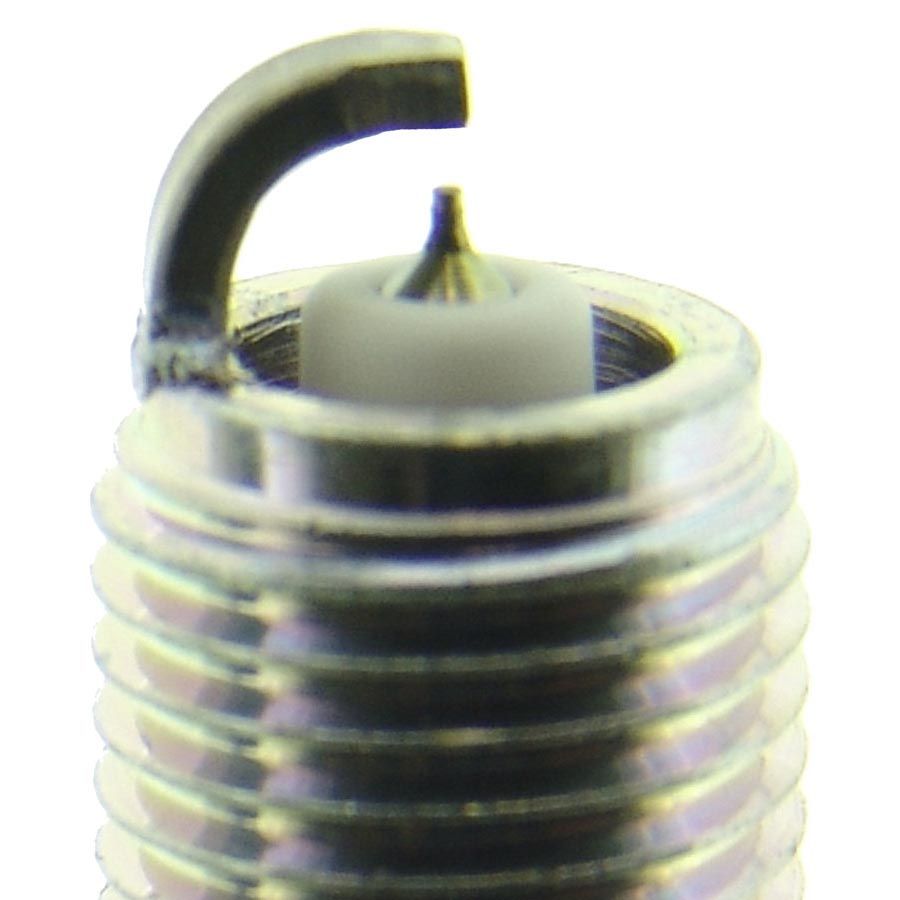

Fine Wire Iridium Tipped Center Electrode and Fine Wire Platinum Tipped Ground Electrode Ensures Slow Wear Rate Providing Stable Idle, Superior Anti Fouling, Improved Fuel Efficiency and Lower Emissions.
- Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
- Corrugated Ribs Prevent Flashover
- Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
- Copper Core Aids in Heat Removal
- Triple Seals Prevent Leakage
Features
- Laser Welded Tips
- Trivalent Metal Plating
- Longest Life Available
Shell
- Thread Size: 10mm
- Thread Pitch: 1.0mm
- Seat Type: Gasket
- Resistor: Yes
- Resistor Value: 5K Ohm
- Reach: 26.5mm (1.04")
- Hex Size: 9/16" (14mm)
- Terminal Type: Solid
- Overall Height: ISO
- Gap:. 035" (0.9mm)
Center Electrode
- Material: Iridium
- Type: Fine Wire
- Size: 0.6mm
- Projection: Projected
Ground Electrode
- Material: Platinum
- Type: Standard
- Shape: Taper Cut
- Quantity: 1
Specifications
- Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
- Brand: NGK
- Heat Range: 9
- Longevity: 80-100k
- Features: Special Gasket
Manufacturer Part Number: SILMAR9A9S
Manufacturer Stock Number: 6213
