Ohlins STX 36 Scooter S36PR1C1L Shock Absorbers - 13.15" - HO 819 | Honda Monkey 2019-2023

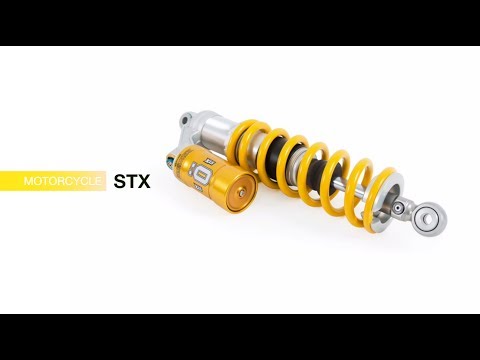

Ohlins STX 36 shock is a performance shock absorber upgrade for selected scooter models.

Based on the well proven and high performing STX 36 shocks Ohlins has developed both mono shocks and twin shocks to enchance the performance and comfort of scooters. The application list includes shock absorber upgrades for 125 up to 600 cc scooters.

The STX 36 is a classic monotube design available in emulsion, piggyback or hose versions depending on application and it can also be specified with a number of different damping adjustment options with or without length adjustment.

Features:

• Adjustable Rebound and Compression damping
• Monotube Shock with External Piggyback Reservoir
• High Pressure Nitrogen Gas Charged
• STX Single Tube design
• 36 mm Piston Diameter
• Adjustable Preload w/ tool
• Top Level Comfort, Rideability and Performance
• Hard Anodized - Precision CNC-Machined Components
• Low-friction Shaft / Seal Head design
• Fully Serviceable and Repairable
• Sold as a pair

Specifications:

• Adjustment Type:
  • Adjustable Length
  • Adjustable Compression Damping
  • Adjustable Rebound Damping
• Color/Finish: Yellow/Chrome
• Damping Method: Gas Charged
• Extended Length: 13.15"
• Mounting Position: Rear Mono
• Type: Coilover Monotube
• Material: Steel
• Reservoir Location: Piggyback
• Bore Size: 36.00 mm
• Progressive Spring Rate: 68.54 lb/in - 108.52 lb/in

Note: For Honda Grom rider over 80 kg / 176 lbs, If under 80 kg / 176 lbs see HO 424

Installation Instructions (1.09 MB)
