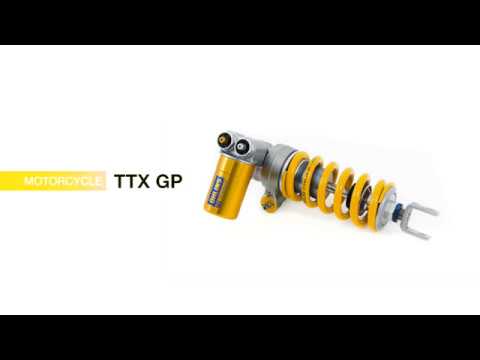

Ohlins TTX GP T36PR1C1LS Shock Absorber - 12.21" - Rear - DU 468

Straight from the champions – the new TTX GP is Ohlins latest range of shock absorbers for sport and supersport bikes. Ohlins are continuously striving to improve their products on quality, consistency, and performance. From Ohlins latest research and development, many components and improvements have been combined into this shock. The TTX GP features a new type of valve which gives better feedback to the rider, also a new piston and band which together with the new valves enhances grip, stability, feedback, and consistency. The new adjuster knobs make it easier to make changes on the fly with or without tools compared to the old design.

Features:

• Ohlins twin-tube shock technology
• Features needle profiles for compression and rebound adjusters
• Updated design results in improved oil flow guidance and volume control for more precise, consistent damping and better fine-tuning
• Available range of preload and compression adjustment is wider
• Rebound and compression are completely separated within the shock with no risk of cavitation
• Completely separate compression and rebound settings
• 36 mm shock primary piston redesigned for improved performance for better traction and feel
• Industry standard of minimized shock-to-shock variance
• Improved chassis feedback for superior rider feel and enhanced control
• Hose Mounted Hydraulic Spring Preload Adjuster
• Sold Each

Specifications:

• Adjustment Type:
  • Adjustable Rebound Damping
  • Adjustable Compression Damping
  • Adjustable Length
• Color/Finish: Yellow/Silver
• Mounting Position: Rear
• Bore Size: 1.42"
• Length: 310 mm +4/-2
• Stroke: 63 mm
• Damping Method: Compression
• Extended Length: Standard
• Model: TTX GP
• Reservoir Location: Piggyback
• Type: Coilover Twin-Tube
