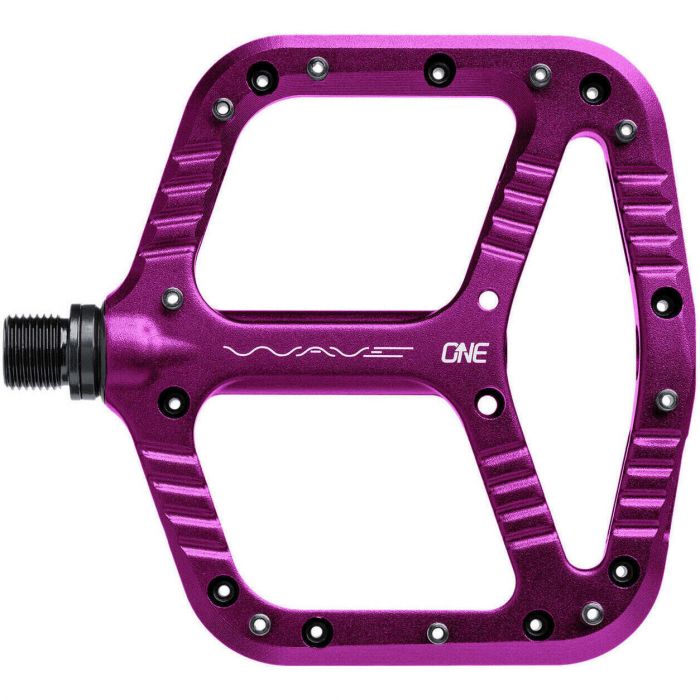

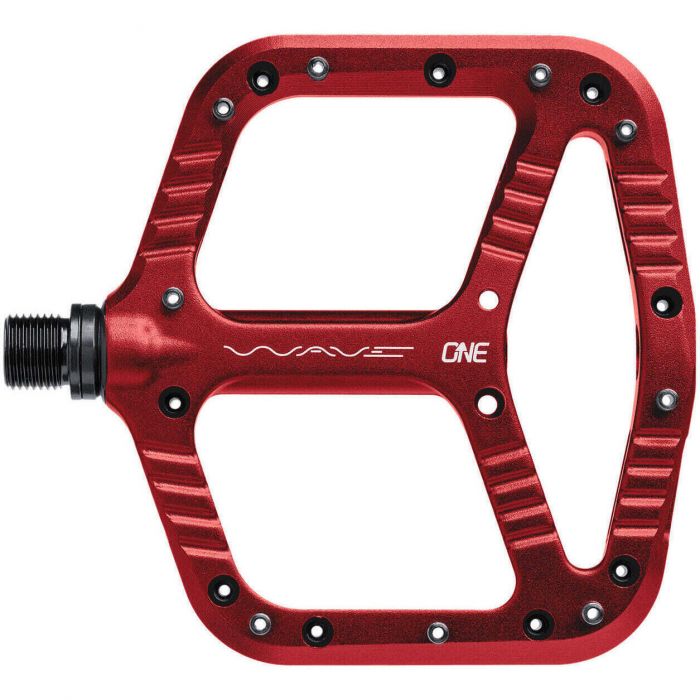

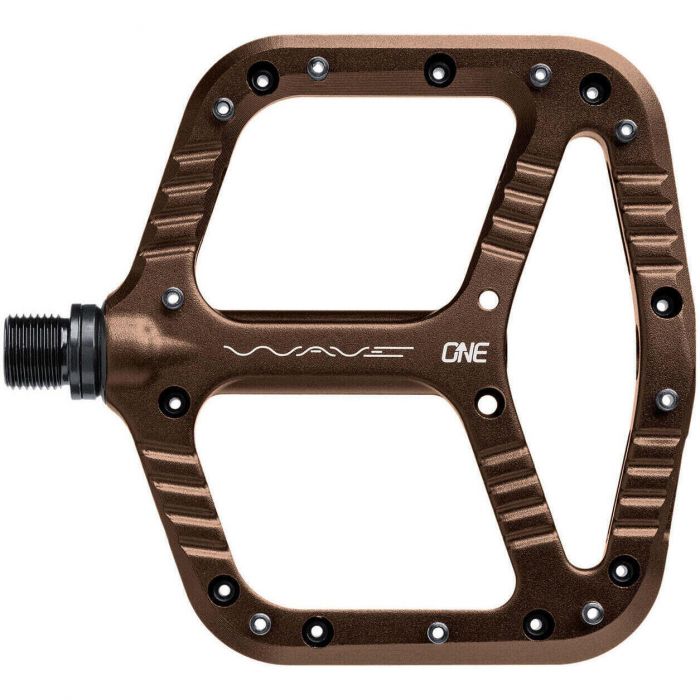

OneUp Components Wave Pedals

Most flat pedal profiles are either convex or concave. OneUp's Wave Pedal is a patented hybrid convex/concave shape that promotes an aggressive heels-dropped riding position and gives you a more natural pedal stroke when seated. With Wave, your foot is being held by the shape of the pedal - not just the pins.

Features:

• The front half of the pedal has a concave profile that hugs the ball of your foot for unmatched grip. The back half of the pedal is sloped to promote an aggressive heels-down foot position for more power and control
• Because the Wave design naturally encourages your heels to drop, the pins are installed at an angle to be vertical when riding. This leverages the Wave profile and increases grip - without the need for longer pins
• The Wave pedal uses a proven axle, bushing and bearing configuration for improved reliability - strong enough for all types of riding
• Sold as a pair

Specifications:

• Weight: 355 g (pair)
• Platform Size: 107 x 110 mm
• Thickness:
  • Axle: 14.2 mm
  • Edges: 11.5 mm
• Bearing configuration: Inboard igus™ Bushing and 3x outboard cartridge bearings
• Pins: M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)
• Axle Material: Chromoly steel with Black ED coating
• Body Material: Forged and CNC'd 6061 Aluminum Body
