RAM Mounts Handlebar Rail Mount with U-Bolt Base and Universal X-Grip Large Phone Holder Kit - RAM-B-149Z-UN10U
$91.99
RAM Mounts Handlebar Rail Mount with U-Bolt Base and Universal X-Grip Large Phone Holder Kit - RAM-B-149Z-UN10U Item # 455486
Description
This product is a Complete Kit. All components to complete your setup are included
4 Steps to Configure your Mount
Click the images below to see exactly how this product works.
Cradle DimensionsInsert Device

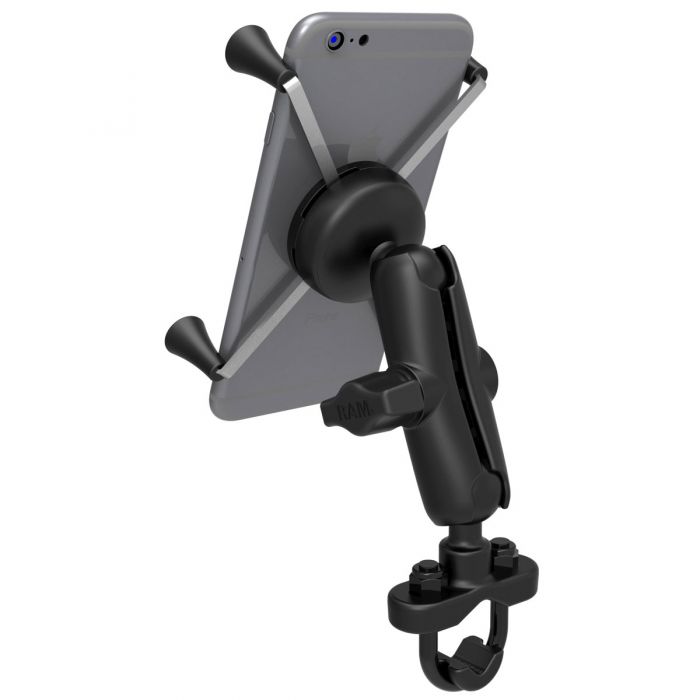

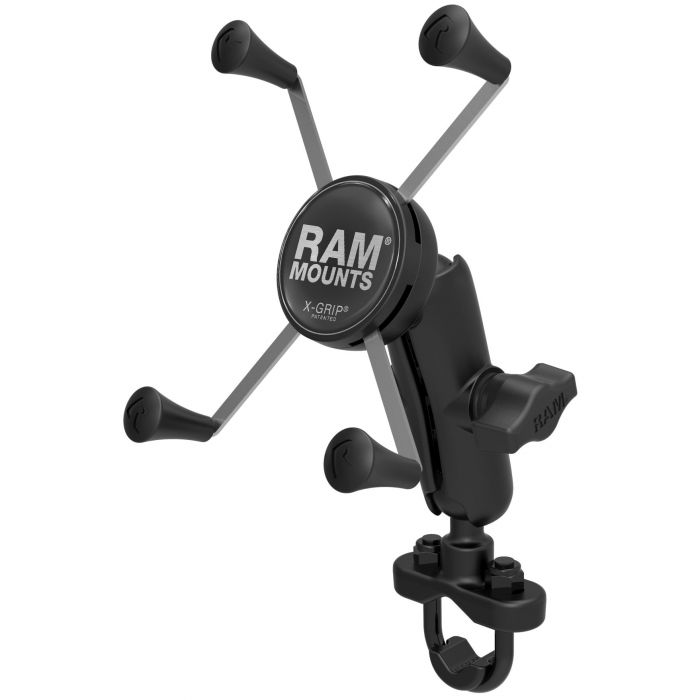

Ideal for handlebars, the RAM-B-149Z-UN10U consists of a zinc-coated U-bolt base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. In addition, hardware is included to accommodate rails from .5" - 1.25" in diameter. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Features:
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Hardware Included:
- (1) Optional Tether
- (1) Glue Tube for Rubber Caps
- (1) 1/4"-20 U-Bolt for .5" - 1" Rails
- (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
- (2) 1/4"-20 Nylock Nuts
- (2) Rubber Caps
- (1) U-Bolt Spacer
Holder Dimensions:
- Width Range: 1.75" - 4.5"
- Depth Range: .875" max
Clamp Range:
- .5" - 1.25" diameter
Socket-To-Socket Length:
- 3"
Ball/Socket Size:
- B Size (1")
Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials:
- Marine-grade aluminum
- High strength composite
- Stainless steel
For list of compatible devices, please visit the RAM Mounts website.
Part Numbers for RAM Mounts Handlebar Rail Mount with U-Bolt Base and Universal X-Grip Large Phone Holder Kit - RAM-B-149Z-UN10U
Reviews
Rated 5 out of
5
by
Cricht0n from
Fantastic for Plus with huge case!
This mount works great for the iPhone 6 Plus with a large case. I have a no name eBay case with a rubber insert, aluminum exterior with an extra layer of gorilla glass to protect the screen. Follow the included instructions to super glue the rubber feet to the arms and you're all set. Love how I can switch this left, right and/or an angle. I've got and FZ09 which means off center display for the speedometer. Mount allows me to angle the phone off to the left side and keep it right in my direct view behind the windscreen. Highly recommend!
Date published: 2016-01-11
Rated 2 out of
5
by
SailorSam from
Mixed Results
The cross-grip was fine but the rubber mesh feature tore after only two uses, on a small
IPhone.
Date published: 2021-08-14
Rated 3 out of
5
by
marissaniki from
Meh
Bought it and used it for about a month before I lost one of the rubber pieces. Came off pretty easily while I was riding and I obviously could not stop and try to find it as it's tiny. Would be a better product if they sent replacements for it. Now there's just a piece of metal there with no rubber stopper on it so it's pretty useless. My phone won't be secure/will get scratched. Our workaround was my dad cut a hole in a black cork and put it on but that fell off as it's not fitted. Not sure if you can buy replacement parts for this but super disappointed after spending so much on it.
Date published: 2022-06-30
Rated 5 out of
5
by
Ducdude from
Robust grip
Bought this so I could monitor my progress on a very rough FSR riding my 2013 Honda CB500X. The rubber tether broke immediately while testing the RAM Xgrip in my driveway. Easy to make a new one with a bicycle inner tube. Didn’t really need it though. The Xgrip held my phone securely on 85 km of rocks, creek crossings, huge holes and bumps and jumps (small jumps). I’ve heard the pivot balls can get smooth over time and slip but that’s an easy fix with 220 grit sandpaper.
Date published: 2021-08-22
Rated 4 out of
5
by
PjPErry from
Nice but
Are use this on my dual purpose motorcycle. Definitely need to use the tether. Once my phone fell out after I drop my bike. Another time one of the rubber knobs fell off and was lost. I did contact the company and they’re sending me a replacement free of charge.
Date published: 2021-06-22
Rated 5 out of
5
by
The Markman from
Works great
Doesn’t look like much but like all the Garmin products works excellent. Phone doesn’t budge even over the worst washboard roads.
Date published: 2021-06-01
Rated 5 out of
5
by
Bikerider21 from
Works perfect
I bought this mount for my boyfriend to use on his bike. He does some off roading, trails, but also highway and commuting occasionally. So far the mount has worked perfectly for him, he’s tested it so far up to 140 km.
Date published: 2021-05-18
Rated 5 out of
5
by
Flapper from
Solid
I expected solid construction but was unsure
Of The grip. I am super confident now. I have an iPhone 8+ and use an otter box, no problem.
Date published: 2021-03-14
Questions
Would this fit an iPhone 11 Pro Max?
Yes it will fit.
Date published: 2020-12-22
Would this fit an ASUS ROG phone 2
RAM do not confirm fitment with this make of phone, however the cradle dimensions are:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
We recommend measuring your phone to confirm if it will fit within these cradle dimensions.
Date published: 2021-12-23
will this fit a samusung s9
No. You would need RAM RAM-B-149Z-A-UN7U (item# 545049) for your Samsung Galaxt S9.
RAM list the following as compatible with this mount:
Apple:
iPhone 6s Plus
iPhone 7 Plus
iPhone 8 Plus
iPhone Xs Max
iPhone 11 Pro Max
iPhone 12 Pro Max
Blackberry:
Evolve X
Garmin:
Drive 50
Drive 51 LM
Drive 52
Drive 61 LM
DriveSmart 51 LMT-S
DriveSmart 61 LMT-S
DriveTrack 71
Nuvi 2788LM
RV 660LMT
RV 770 LMT-S
Google:
Pixel 2 XL
Pixel 3 XL
Pixel 3a XL
HTC:
Bolt
U Ultra
Huawei:
Mate 20 X
LG:
Fiesta 2 LTE
Fiesta LTE
G8S ThinQ
Harmony
Stylo 2 V
Stylo 3
Stylo 3 Plus Titan
Stylo 4
V20
V50 ThinQ
X charge
X venture
Magellan:
TR5
TR7
Motorola:
moto e4 plus
moto g4
moto z2
moto z2 play
moto z3
Rand:
McNally Road Explorer 5
McNally TND 540
Razer:
Phone 2
Samsung:
Galaxy A7
Galaxy A7 (2017)
Galaxy A7 (2018)
Galaxy A8
Galaxy A8 (2016)
Galaxy A9 (2016)
Galaxy A9 Pro (2016)
Galaxy A9 (2018)
Galaxy A70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro
Galaxy E7
Galaxy Grand Neo Plus
Galaxy J7
Galaxy J7 Max
Galaxy J7 V
Galaxy Note 5
Galaxy Note 10 Plus
Galaxy Note20 Ultra
Galaxy On7
Galaxy S10 5G
Galaxy S8
Galaxy S8 Active
Sony:
Xperia C4
Xperia L2
Xperia XA Ultra
Xperia XA1 Ultra
Xperia XA2 Ultra
Xperia XZ Premium
Date published: 2023-03-30
will this fit on a 2018 R3? I have a iPhone 11
RAM recommend item #455487 instead of this one, for your iphone 11. There is no specific bike fitment information for this item, as it is a universal part. The U-bolt mount will accommodate rails from 0.50" to 1.25" in diameter. You would need to check the dimensions of your bars
Date published: 2020-12-22
Would it fit a 2020 rebel 500 and a Samsung note 10 plus?
No confirmed fitments for your bike. U-Bolt Dimensions: Fits rails that are 0.50" to 1.25" diameter. The mount will fit your Samsung Note 10 Plus
Date published: 2020-12-22
Does the complete kit come with the rubber tether?
Yes it does
Date published: 2020-11-17
Will this fit a 2010 Ducati Multistrada 1200S and hold an iPhone XR?
Yes, it will fit an iPhone XR. There is no specific bike fitment information for this item, as it is a universal part. The U-bolt mount will accommodate rails from 0.50" to 1.25" in diameter. You would need to check the dimensions of your bars
Date published: 2020-11-27
Does this mount include the device tether? Would the handlebar mount fit on an '08 Honda Shadow?
Yes, the tether is included. Here is a list of contents:
1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
This item is universal, and fits all rails between 0.50" to 1.25" so it should fit your Honda Shadow
Date published: 2020-02-05
