RAM Mounts Single Swing Arm with Rectangle Base and Horizontal Mounting Base Kit - RAM-109H

This product is a Complete Kit. All components to complete your setup are included

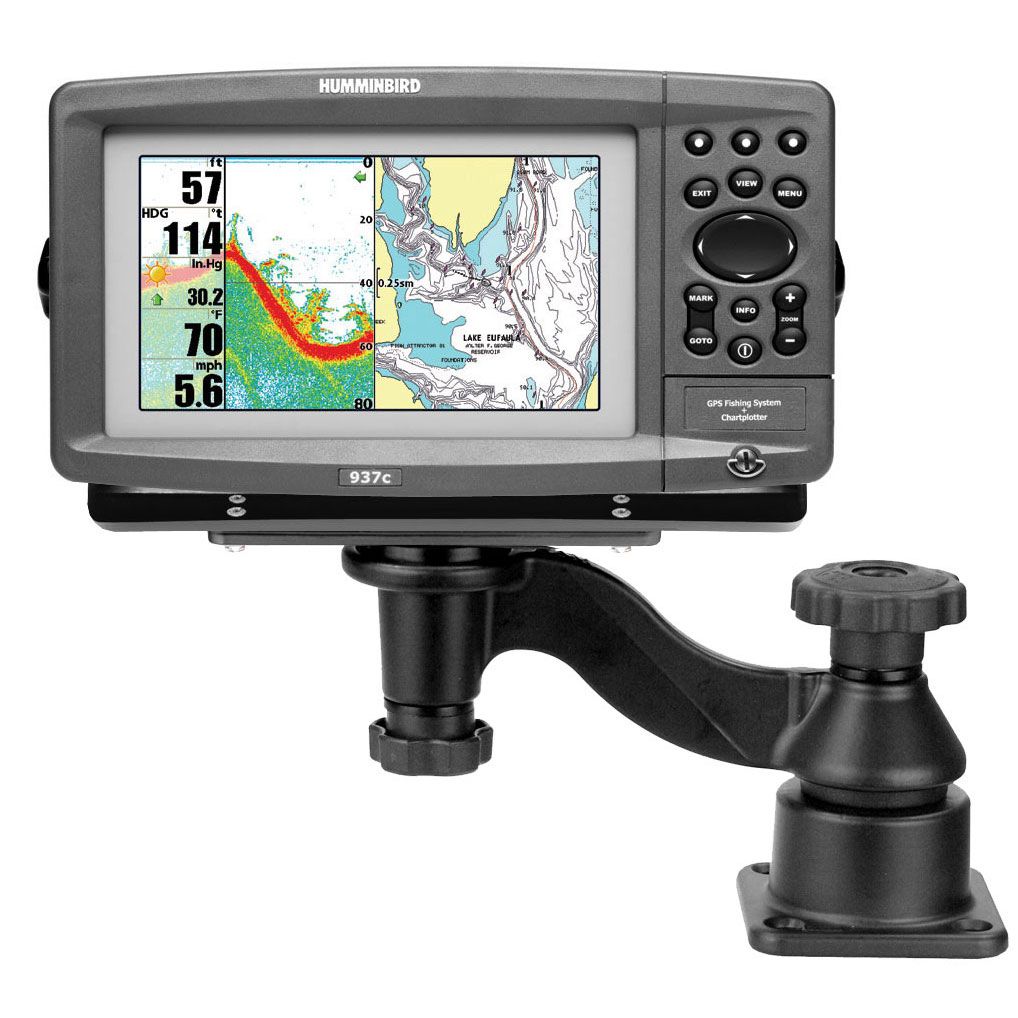

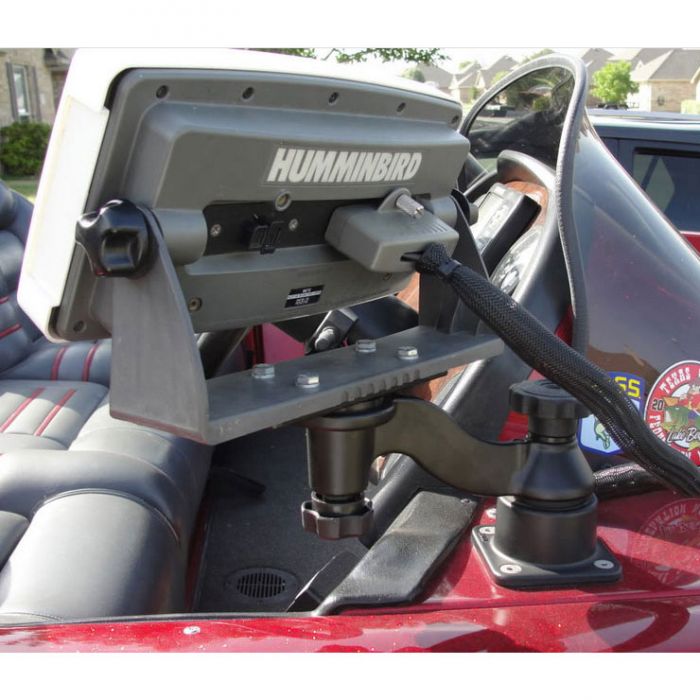

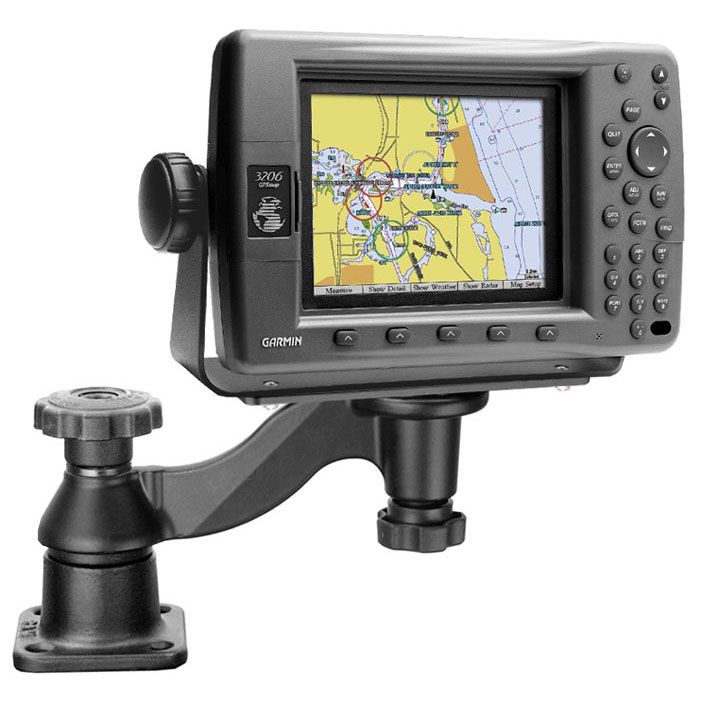

The RAM single swing arm mount consists of a 6" long BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Dimensions:

• Center of knob to center of ball socket: 6"
• Overall length of swing arm assembly: 10.75"
• Overall height: 5.6"
• Height from base to top of knob: 4.91"

Material: Powder Coated Marine Grade Aluminum

Compatible Devices:

• Garmin Fishfinders/Chartplotters
• Humminbird Fishfinders/Chartplotters
• Lowrance Fishfinders/Chartplotters
• Raymarine Fishfinders/Chartplotters

Additional Resources:

Plate Hole Patterns

RAM-109H Dimensions
