Ricks Motorsport Electrics

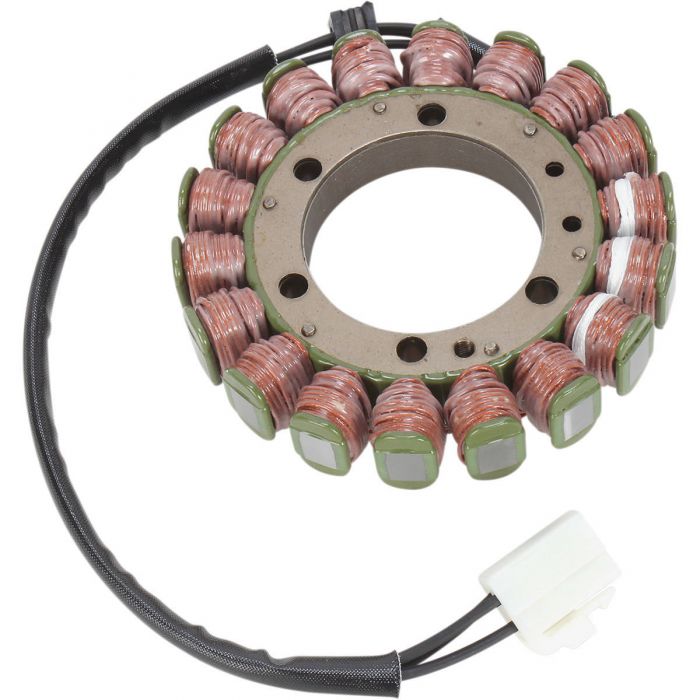

Ricks Motorsport Electrics Stator
Item: #173883 | Part Number: Not Selected$38.99 - $558.99
Description
- Over 30 years of stator manufacturing and rebuilding expertise
- OEM-style and high-output Hot Shot Series options available
- Complete kits include wiring harness, grommets, and connectors
- One-year replacement warranty with core exchange on rebuilds
Ricks Motorsport Electrics Stator Item # 173883
Description
Features:
Rick's Motorsport Electrics has been providing stators for over 30 years. Rick's manufacturers new and rebuilds custom stators for motorcycles, ATVs, UTVs, off road, street bikes, & snowmobiles.
All rebuilt stators require a core exchange and come with a one year replacement warranty. Most new and rebuilt stators are built to stock specification, but we do offer some high output stator versions as part of the Hot Shot Series so you can get even more electrical power from your machine
- OEM-style stators
- Stators come with a wire harness, rubber grommets, and all end connectors for a more tech friendly installation whenever possible
- Direct plug-in stators complete with all rubbers and OEM-style plug end (unless noted)
Part Numbers for Ricks Motorsport Electrics Stator
Fitment for Parts Ricks Motorsport Electrics Stator
This part fits the following vehicles:
Videos
Videos
Reviews
Rated 3 out of
5
by
Donny from
Almost perfect
I bought this stator a few months ago to replace the broken stock one . Install was easy . Instructions were very simple to follow . After the install I was reading 20v to the coil but no spark . Coil read a little out of spec so I replaced it . Still got voltage but not spark . I went from one end of the bike to another . Still no spark . I spent three days beating my head against the wall trying to figure out what was wrong . Then, out of nothing short of desperation, I switched the leads going to the cdi from the stator . Immediately after I got spark . Turns out whoever wired the stator from Ricks soldered the wrong wires on the wrong terminals . Red was where the green was suppose to be ect . I was getting 20v because it was sending the wrong sine wave to the coil . After this my bike has never ran better . I've had it running about 2 months now and it's a very solid unit (when wired properly) . I never contacted Fort Nine or Rick's for this matter , but I'm sure if I did they make it right. As it's fixed I don't see the reason .
Date published: 2017-10-27
Rated 5 out of
5
by
Tupper4 from
2006 GSXR 600
Bought this Stator better than a month ago now along with a RM Rectifier and could not be happier. Ricks Motorsport Electrics are the only safe option when doing OEM replacement. Package came quick and was an easy plug and play. No problems. Highly reccomend.
Date published: 2020-03-26
Rated 5 out of
5
by
Dude from
I bought this item and shipping was fast and part fits perfect
Date published: 2021-09-20
Rated 5 out of
5
by
Kram12 from
Nice fit.
Good fit .Bike is charging again. Shipped quickly.
Date published: 2019-11-22
Rated 5 out of
5
by
Masa from
Exactly what was required!
Old stator o longer charging due to burnt coils. Replaced with new one and no complaints!
Date published: 2019-11-19
Rated 5 out of
5
by
Greybeard from
Works just fine
The old vefer is humming like a top with this stator
Date published: 2019-09-10
Rated 5 out of
5
by
Madmax from
super fonctionnalité
Je n'etais pas sur de pas mettre un stator oem et j'ai pris la chance et finalement je suis super satisfait.Tout fonctionne a merveille j'ai regler mon probleme.
Date published: 2019-08-28
Rated 5 out of
5
by
Josh from
Direct fit.
Website says it's not compatible with 09 Gsxr 600, however if you buy 1/2" longer bolts and 2 washers while reusing 2 nuts it fits perfectly.
Date published: 2018-08-26
Questions
does the harness wire from stator plug rights into the xl600r harness are there any modifications that need to be done ?
It is a plug-and-play application.
Date published: 2017-08-13
The plug in the photo is different then whats on my bike. Is this just a what ever photo/example?
The photos on our website are, for the most part, for information purposes only. This means that the actual item may vary.
The suppliers and manufacturers provide us with stock photos for the products, and often, when there are many different models, a standard photo is used.
If you enter the year, make and model of your vehicle on the product page, you will be able to order the vehicle specific part for your bike, which will show as a "Guaranteed Fit"
Date published: 2020-04-10
Does it come with the gasket? If not wheres the best place to order one?
It does not come with a gasket. We sell some separately for certain bikes here:
https://fortnine.ca/en/ricks-motorsport-electrics-stator-gasket
Simply enter the year, make and model of your bike on the product page to check fitment. If there isn't one listed, you could either reuse the stock one if it's okay, or get a new one through a stock dealer.
Date published: 2020-09-23
Does this come with the rest of the stator? Magnets, ect? Im looking for one that has the outt/er part included ( the cover that gets pulled)
If you're referring to the engine case the stator bolts to .. it does NOT. The case is a separate component. You have to remove the old stator and install the new on the case. Best practice is to take pictures of how the old one is installed nefore taking anything apart. Where bolts are located and routing of the wire sheaves and positioning of the signal generator. Install new in same way .. maybe take a picture each step of the e.g. remove bolt .. take picture .. etc.
Date published: 2024-06-16
Will this run lights and guages
Lights and accessories get their power ( DC) from the battery. This is a replacement "part" for an existing component that has failed and not a add on electrical generator for lights and acc. The stator electrical output is AC voltage and vehicle lights and accessories require DC voltage. A rectifier converts the stator AC output to DC and a regulator keeps the DC voltage in a range that charges the battery without overcharging it.
A magneto was used many years ago (and maybe some dirt / trail still do ) to run some lights and maybe a few low draw accessories and not sure if that set up required battery and R/R if that is what you're actually looking for.
Date published: 2024-06-16
Does Ricks Motorsport Electrics Stator for the DR650 come with the pickup coil?
Not sure what you mean by the pick up coil ? But it's basically a plug and play operation.. Only thing you have to get extra is the gasket. Take out the old and put in the new.. A little time consuming operation, but well worth the savings..
Date published: 2016-08-10
