Wheels MFG 29 mm Open Bore Adapter for 1/2" Rod - BP0016

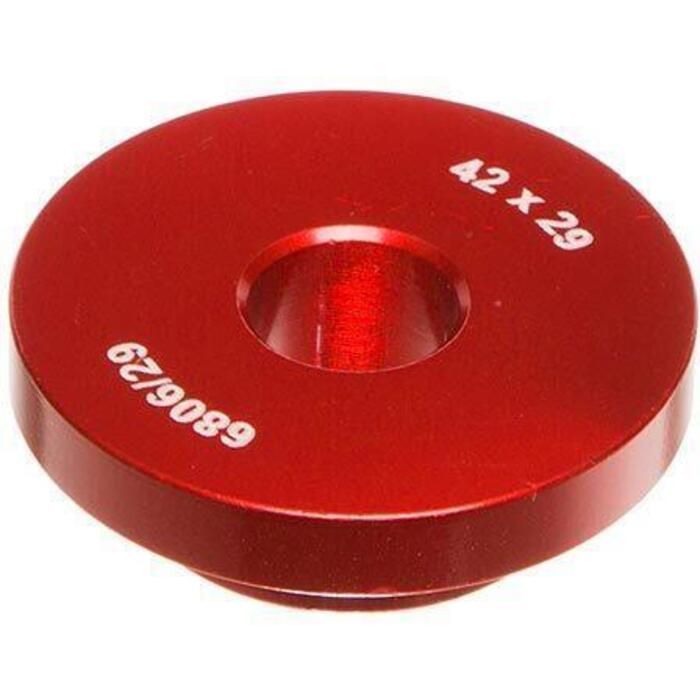

29 mm open bore adapter is used to press 29 mm x 42 mm (DUB Compatible) sealed bearings. The adapter is machined with one step at 29 mm OD, which fits into the center of the sealed bearing. Will press in Wheels MFG SRAM DUB compatible bottom bracket cups. 1/2" thru hole for use with Wheels MFG Bottom Bracket Press BP0006, BP0007

Features:

• Installs: 29 x 42 (DUB compatible) bearing
• Inner Step Outer Diameter: 41.8 mm
• Outer Diameter: 28.9 mm
• Thru Hole Diameter: 12.8 mm (1/2")
• Thickness: 7 mm
• Compatible with PRESS-7, PRESS-7-PRO or PRESS-9-PRO handles/rod
• Machined, red anodized aluminum

Note: 29SRAM-OB is designed specifically to press in 6806/29 sealed bearings and will also press in Wheels MFG SRAM DUB compatible bottom brackets. May not be suitable for pressing in other brand's DUB compatible bottom brackets. If used with other brand BBs, make sure the adapter is pushing on either the bearing outer race, or the BB cup itself. Do not push on the bearing seal.
