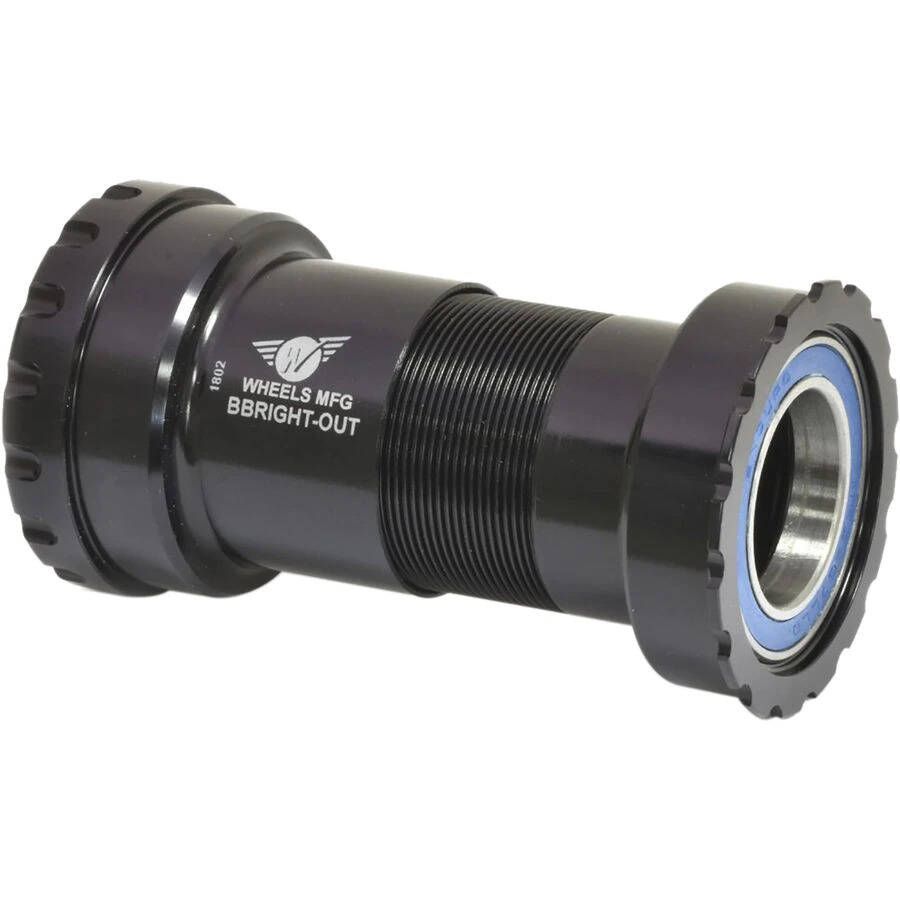

Wheels MFG BBRight Threaded Bottom Bracket - BBRIGHT-OUT-1

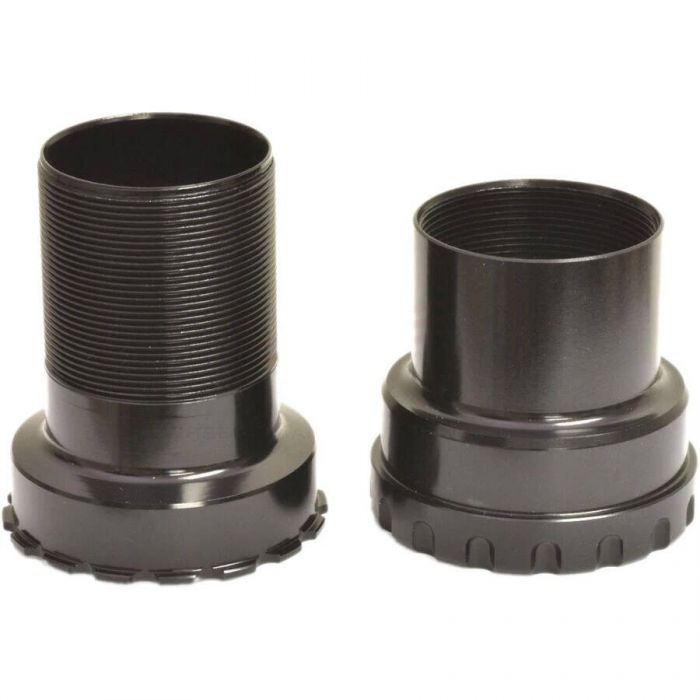

Thread together bottom bracket for frames using the BBRight™ bottom bracket standard. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Compatible with the following Bottom Bracket Standards (46 mm BB shell inner diameter, 79 mm shell width):

• BBRight™
• 24.00 mm spindle diameter cranksets.

Specifications:

• Bearings: Enduro ABEC-3
• Color: Black
• Bottom Bracket Shell Width: 79 mm
• Bottom Bracket Shell I.D.: 46 mm
• Crank Spindle Diameter: 24.00 mm
• Tool Pattern: 48.5 mm x 16 notch
• Over Bearing Width: 91.5 mm in 79 mm wide shell
• Weight: 146 g

Includes:

• BB Cups with bearings
• 2x Silicone dust seals
• 2x 0.5 mm crank spindle spacers
• 2x 1.0 mm crank spindle spacers

Notes:

• FSA MegaExo spindles can be between 24.00 mm and 24.07 mm in diameter. Please measure your FSA crank spindle. If spindle is 24.07 mm, this BB will not work! Purchase our FSA 24.07 x 37 ceramic hybrid bearings separately.
• Over Bearing Width Dimensions include supplied silicone dust shields.
