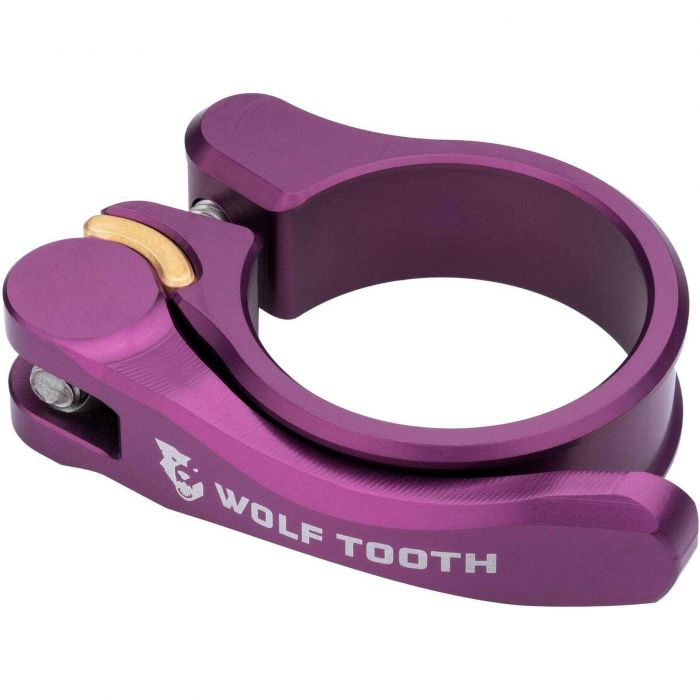

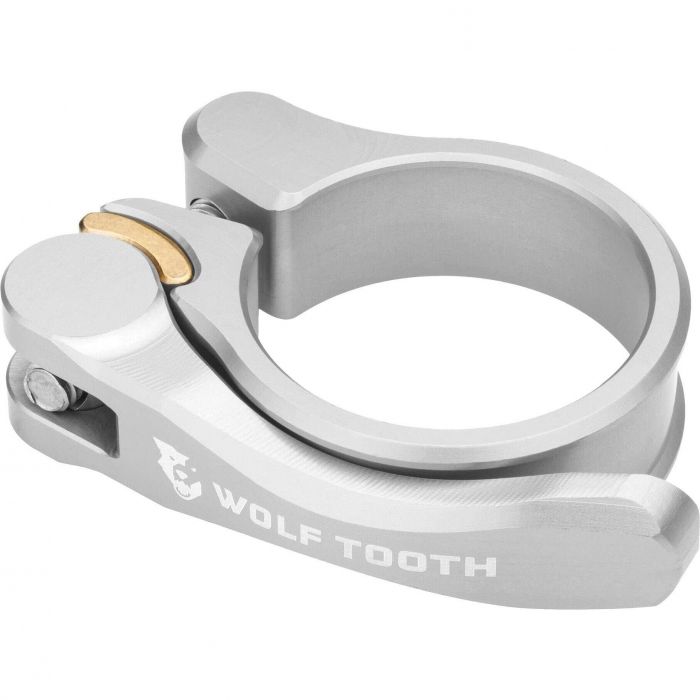

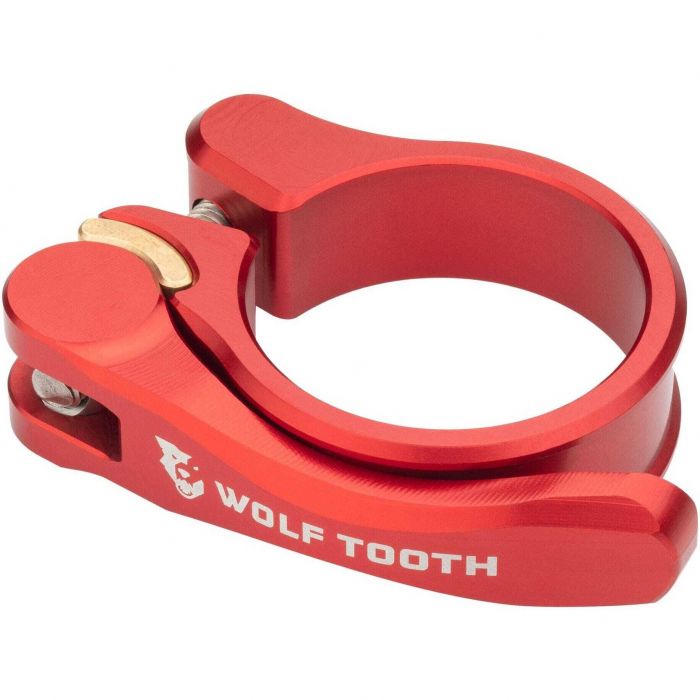

Wolf Tooth Quick Release Seatpost Clamp

The Wolf Tooth Quick Release Seatpost Clamp allows for easy saddle height adjustments. An ergonomic lever on the side of the clamp opens and closes the clamp, which is held together by a bolt with a bronze bushing that lets the rider set the torque. It is friendly with carbon, steel, alloy, and titanium frames.

Machined from 6061-T6 aluminum in Wolf Tooth's Minneapolis facility, the Quick Release Seatpost Clamp is available in different sizes and a variety of anodized colors.

Frames may vary slightly from the nominal diameters due to tolerances and paint thickness. Clamps will fit on frames that are within +/- 0.5 mm of specified size. For example, a 34.9 mm clamp will fit frames with a seat tube measuring from 34.4 mm to 35.4 mm in diameter.

Features:

• Bronze bushing for smooth lever action
• Low-profile ergonomic lever
• Stainless steel bolt with spherical washer
• CNC machined 6061-T6 aluminum
• Secure, precise clamping

Specifications:

• Clamping height: 13.5 mm
• Weight:
  • 28.6 mm: 34 g
  • 29.8 mm: 34.5 g
  • 31.8 mm: 35 g
  • 34.9 mm: 36.5 g
  • 36.4 mm: 37 g
  • 38.6 mm: 37.5 g
• Material: 6061 T6 aluminum, M5 stainless steel bolt with integrated washer
• Torque spec: 6 Nm Max

Compatibility:

• Not compatible with older Ibis carbon bike frames that use a proprietary curved seat collar
• Compatible with new carbon Ibis frames that use a conventional seat post clamp including Ripley V5, Ripmo V3, DV9 V2 and HD6
• The seatpost clamp should match the diameter of the seat tube on your frame and not the diameter of the seatpost itself
