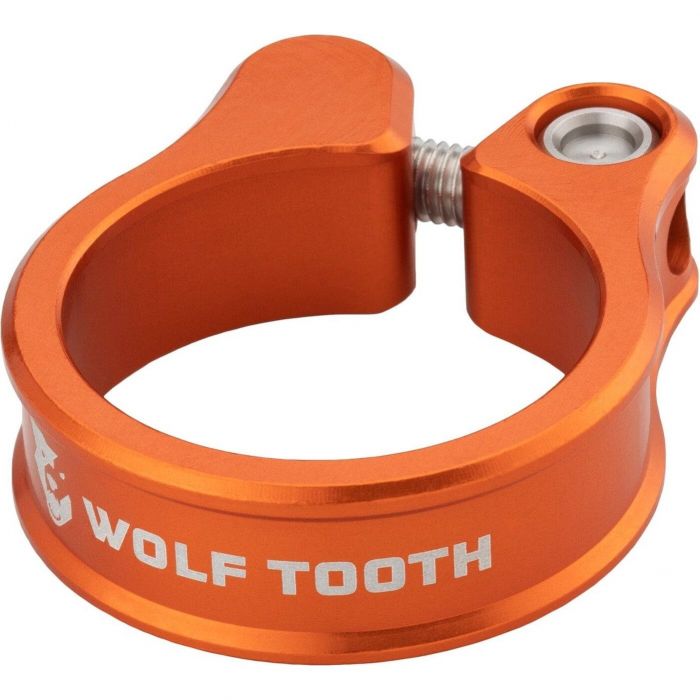

Wolf Tooth Seatpost Clamp Item # 947326
Description
The precision-engineered Wolf Tooth Seatpost Clamp secures your seatpost and looks good doing it. At the heart of this seatpost collar is our custom self-aligning bolt and anchor. The M5 bolt includes a spherical washer and mates with a cylindrical anchor barrel. This means that threads are always perfectly aligned, preventing binding and ensuring consistent clamping force. Machined from 6061 aluminum in Wolf Tooth's Minneapolis facility.
Frames may vary slightly from the nominal diameters due to tolerances and paint thickness. Clamps will fit on frames that are within +/- 0.5 mm of specified size. For example, a 34.9 mm clamp will fit frames with a seat tube measuring from 34.4 mm to 35.4 mm in diameter.
Finding the right Clamp
Specifications:
- Clamping height: 13.5 mm
- Weight:
- 29.8 mm: 18 g
- 31.8 mm: 19 g
- 34.9 mm: 20 g
- 36.4 mm: 20 g
- 38.6 mm: 21 g
- 39.7 mm: 24 g
- Material: 6061 T6 aluminum, M5 stainless steel bolt with integrated washer
- Tool interface: 4 mm hex key
- Torque spec: 6 Nm Max
Compatibility:
- Not compatible with older Ibis carbon bike frames that use a proprietary curved seat collar
- Compatible with new carbon Ibis frames that use a conventional seat post clamp including Ripley V5, Ripmo V3, DV9 V2 and HD6
