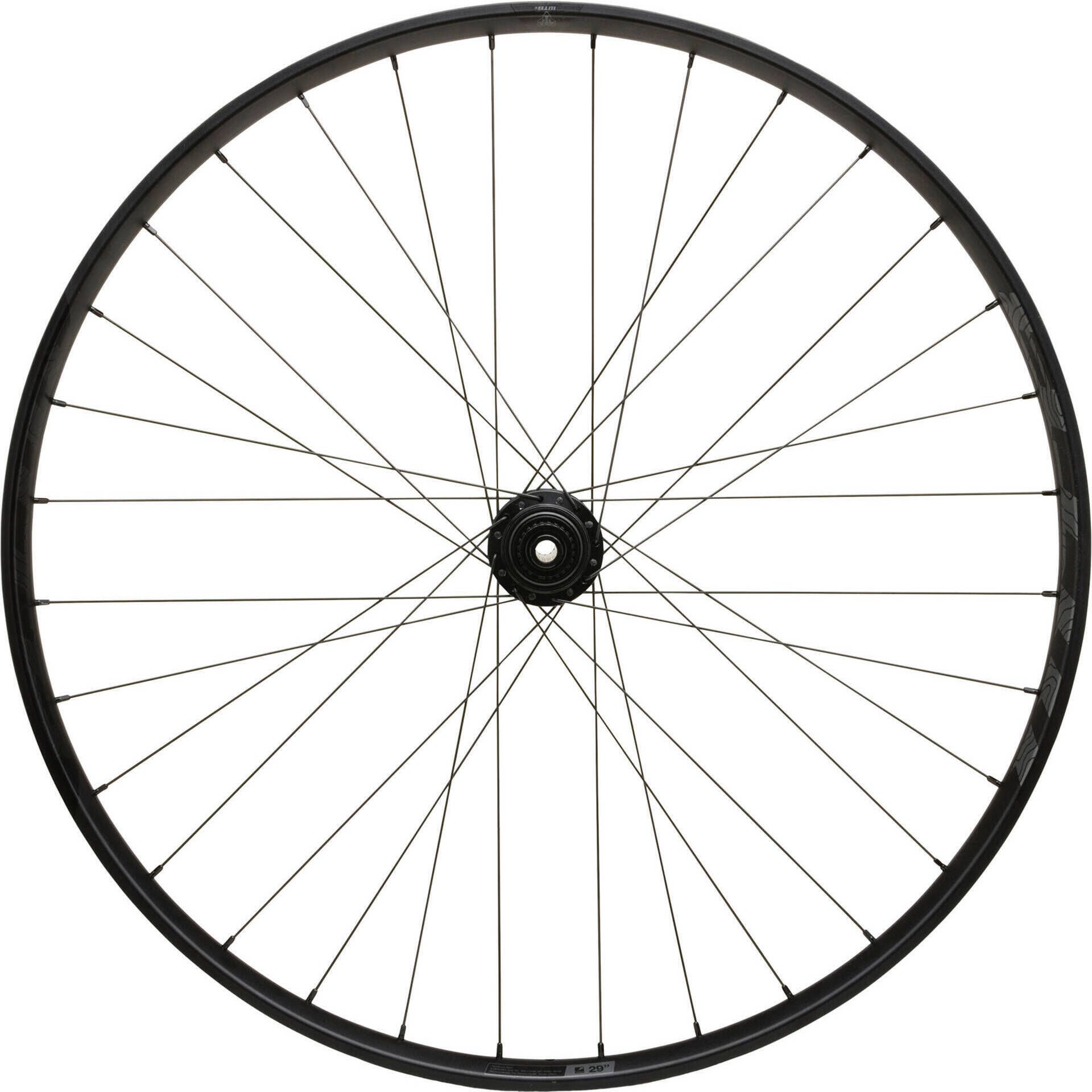

WTB Proterra Light i23 Rear Wheel

Proterra Light i23 wheels check all the boxes for a fast and light alloy wheelset. The 23 mm inner rim width provides the optimal tire profile for adventure road and gravel tires ranging from 30-42mm. Its open-cavity profile features thin, weight-optimized walls that provide the perfect blend of stiffness, resilience and efficiency. Subdued graphics on a bead blast finish ensure these wheels won't clash with the colors of your dream bike. We didn't skimp on hubs either. Top-tier EZO bearings, a swift 6-pawl freehub and 5 degrees of engagement provide the look, sound and feel you expect of a high-end tubeless wheelset.

Usage: Adventure Road / Gravel / Cyclocross

Features:

• Frequency Hub
• Solid Strip & TCS Tape
• 3-cross lacing and Alloy Nipples
• Hand Built

Tubeless Compatible System

standardized tubeless rim/tire system designed to meet international ETRTO standards and deliver unbeatable tubeless performance and reliability. TCS components reduce weight, increase traction, virtually eliminate flats and has established itself as the most dependable tubeless system available. the TCS system includes tires, rims, tape, sealant and valves to provide a comprehensive package of unrivaled tubeless performance and reliability. Every Proterra wheel benefits from the TCS (Tubeless Compatible System) system and ships with the Solid Strip, TCS tubeless tape and black alloy valves already installed. This means all Proterra wheels are ready for tubeless tires and sealant right out of the box.

Depedable 6069 Alloy

Proterra rims are extruded from WTB's premier 6069 aluminum alloy to optimize strength while a bead blast finish and durable water-transfer decals keep your wheels looking fresh. the extensive testing shows other 6000-series alloy to be less ding-resistant, while stiffer 7000-series alloys result in a harsher ride feel and tend to increase pinch flats. All of this ensures WTB Proterra wheels provide the compliance you expect on the first ride and the longevity you demand for every ride that follows.

Specifications:

SRAM XDR

• Wheel Diameter: 700
• Position: Rear
• Spacing: 12x142 mm
• Spoke Holes: 28-hole
• Driver Body: SRAM XDR
• Rotor Mount: Centerlock
• Inner Rim Width: 23 mm
• Rim ERD : 606
• Weight : 966 g
• Max Rider Weight: 265 lbs
• Part Number: W045-0240

Shimano HG 11-Speed

• Wheel Diameter: 700
• Position: Rear
• Spacing: 12x142 mm
• Spoke Holes: 28-hole
• Driver Body: Shimano HG 11-Speed
• Rotor Mount: Centerlock
• Inner Rim Width: 23 mm
• Rim ERD : 606
• Weight : 966 g
• Max Rider Weight: 265 lbs
• Part Number: W045-0239

User Manual (1.42 MB)
