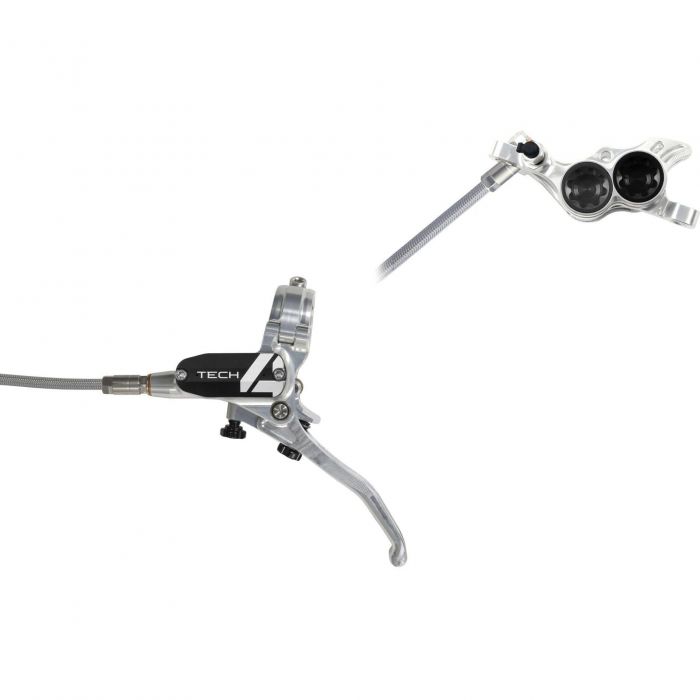

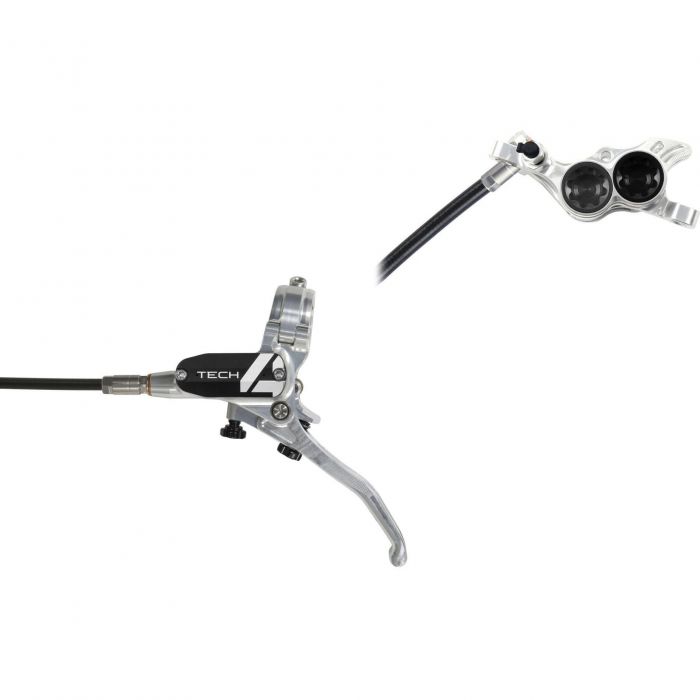

Hope 4 E4 Disc Brake Lever/Caliper

The Tech 4 E4 builds on Hope's 25+ years experience designing and manufacturing hydraulic brake systems. The Tech 4 uses all new internal sealing for reduced friction and the pivot spins on roller bearings, allowing the spring rate to be reduced. The lower spring rate in turn gives a lighter lever action, reducing rider fatigue and keeping legendary feel and modulation.

The updated E4 caliper utilizes hybrid style Stainless steel pistons with a phenolic insert allowing for smoother movement and less maintenance, while still able to manage high temperatures without heat transfer during extreme use.

Features:

• Increased power versus Tech 3
• Lever shape updated to provide a more ergonomic shape orientated to provide the best mechanical advantage during braking
• Hinged clamp reducing weight and to improve ergonomics
• Tool free bite point and reach adjustments
• Hybrid piston design
• Rigid CNC'd one piece caliper
• Compatible with a wider range of current shifter options
• Choose either standard or braided hose
• 30% pressure increase compared with the Tech 3 brake
• Reservoir area increased to lower overall stack height
• Shifter integration has been improved and now offers 30 deg. of angle adjustment as well as neater packaging and compatibility with the latest shifters
• Lateral adjustment on both sides of the master cylinder is also possible to give a wide range of lever position options
• Hybrid-style pistons that allow smoother movement and require less maintenance, and a phenolic insert to manage heat transfer during extreme use
• The Tech 4 retains the tool-free bite point and reach adjustments from the Tech 3
• All Tech 4 brakes are supplied with new racing compound pads
• Maximum Rotor thickness for E4 caliper is 2.3 mm

Specifications:

• Adjustable Reach: Yes
• Brake Caliper Type: Post Mount
• Brake Lever Actuation: Hydraulic
• Adjustable Contact Point: Yes
• Hydraulic Fluid Type: DOT
• Rotor Included: No

Included:

• 1 x Tech 4 Lever
• 1 x E4 Caliper
• 1 x Hydraulic Hose

Installation Instructions (10.40 MB)
