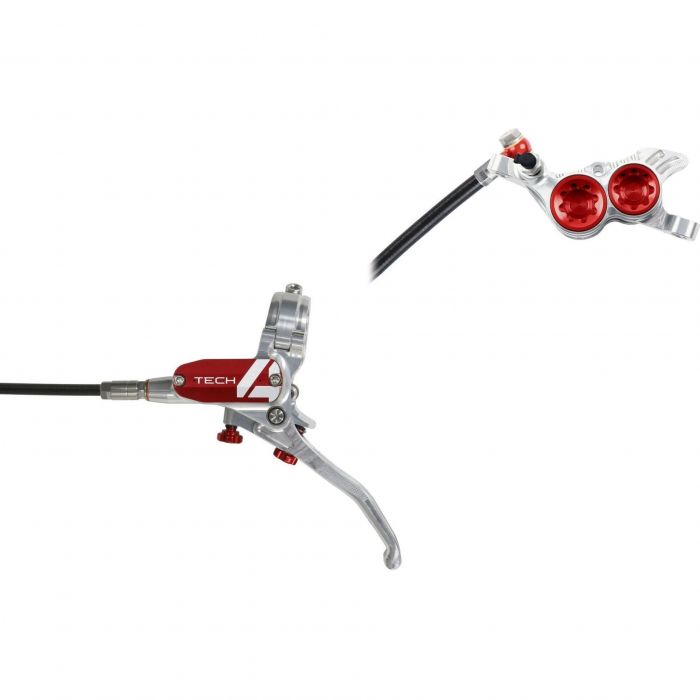

Hope 4 V4 Disc Brake Lever/Caliper

The Tech 4 V4 builds on Hope's 25+ years experience designing and manufacturing hydraulic brake systems. The Tech 4 uses all new internal sealing for reduced friction and the pivot spins on roller bearings, allowing the spring rate to be reduced. The lower spring rate in turn gives a lighter lever action, reducing rider fatigue and keeping legendary feel and modulation.

The updated V4 caliper utilizes hybrid style Stainless steel pistons with a phenolic insert allowing for smoother movement and less maintenance, while still able to manage high temperatures without heat transfer during extreme use.

Features:

• Increased power versus Tech 3
• Lever shape updated to provide a more ergonomic shape orientated to provide the best mechanical advantage during braking
• Hinged clamp reducing weight and to improve ergonomics
• Tool free bite point and reach adjustments
• Hybrid piston design
• Rigid CNC'd one piece caliper
• Compatible with a wider range of current shifter options
• Choose either standard or braided hose
• 30% pressure increase compared with the Tech 3 brake
• Reservoir area increased to lower overall stack height
• Shifter integration has been improved and now offers 30 deg. of angle adjustment as well as neater packaging and compatibility with the latest shifters
• Lateral adjustment on both sides of the master cylinder is also possible to give a wide range of lever position options
• Hybrid-style pistons that allow smoother movement and require less maintenance, and a phenolic insert to manage heat transfer during extreme use
• The Tech 4 retains the tool-free bite point and reach adjustments from the Tech 3
• All Tech 4 brakes are supplied with new racing compound pads
• Maximum Rotor thickness for V4 caliper is 3.3 mm

Specifications:

• Adjustable Reach: Yes
• Brake Caliper Type: Post Mount
• Brake Lever Actuation: Hydraulic
• Adjustable Contact Point: Yes
• Hydraulic Fluid Type: DOT
• Rotor Included: No

Included:

• 1 x Tech 4 Lever
• 1 x V4 Caliper
• 1 x Hydraulic Hose

Note: The V4 caliper is not compatible with all direct mount 180 mm forks due to the large piston design and variation in mount positions. Hope recommend running the V4 caliper with the correct mount and a 200 mm rotor in this application. The V4 caliper is also not compatible with the 2021 Commensal Supreme DH frame 200 mm Direct Postmount.

Installation Instructions (10.40 MB)
