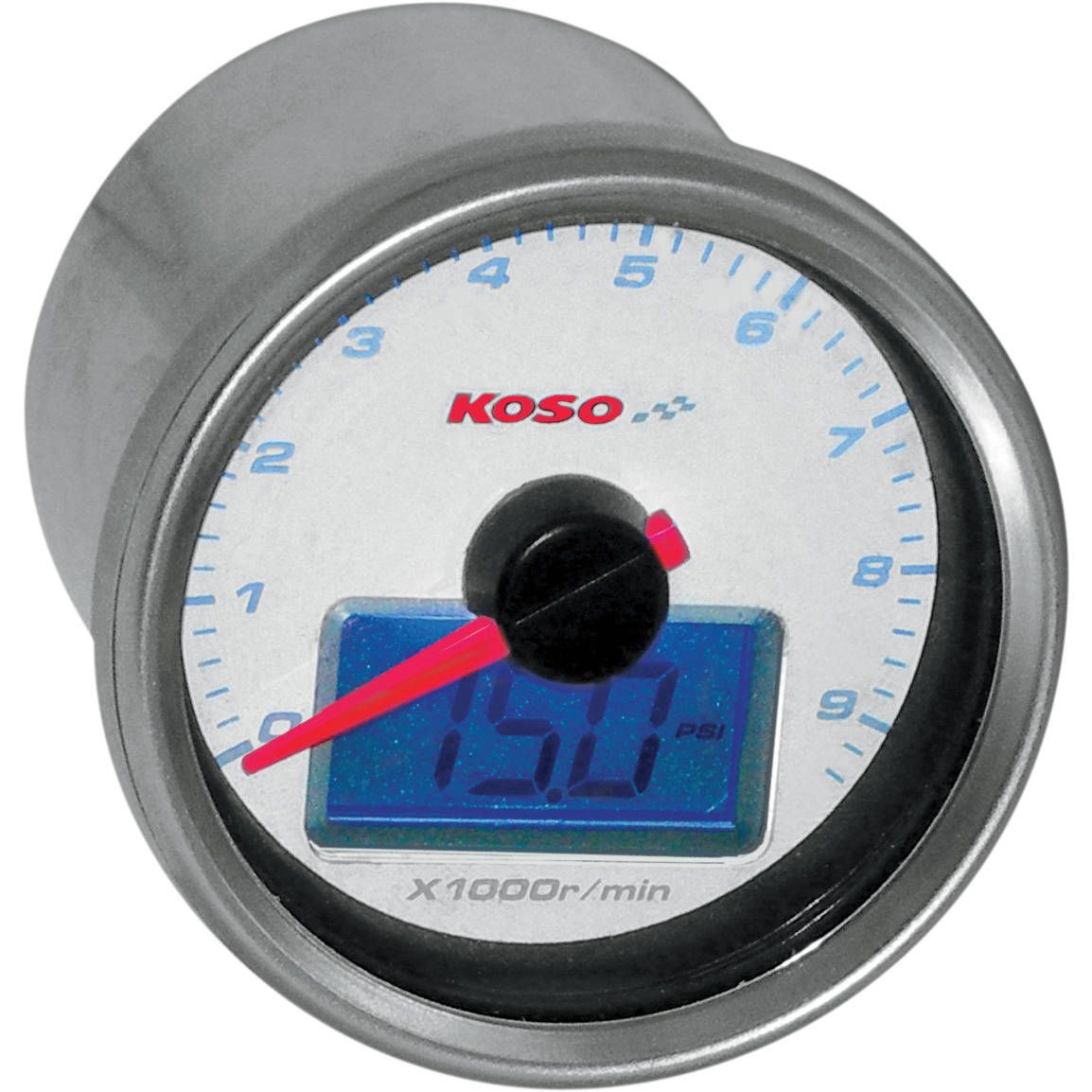

Koso HD-01R Tachometer with Oil Pressure Gauge - BB551B20

The digital HD-01R Tachometer for Harley-Davidson® gives precious informations on the oil pressure, and its warning function could also save the engine from bad damage. This instrument will fit with the OEM oil pressure sensor. To make the needle stable for the high vibrations, the stepper motor is on all our needle meters. With the auto-scan function, the HD-01R Tachometer for Harley-Davidson® will scan when the engine is turned on. This tachometer with illuminated needle is very easy to read at night. Want something different? This is the right meter.

Features:

• Stainless steel body with easy-to-read white dial background with blue backlight and backlit digital display
• Dial displays 0-9000 rpm (resolution: 100 rpm)
• Stepper motor keeps needle stable under heavy vibration
• Blue-backlit digital display shows oil pressure (0-75 psi)
• Gauge measures 2.17" dia. without bezel; 2.4" dia. with bezel
• Works with single- or dual-fire ignitions
• Compatible with OEM oil pressure sensors
• Includes gauge bracket
• Optional chrome bullet housings and handlebar brackets available separately
• Matching KOSO speedometer available in this section.
• Should be used with Harley-Davidson® sensor 74438-99A (H-D® jumper wire oil pressure sensor 32806-00)
• Some motorcycles might require adjustable RPM signal filter in order to work correctly

Installation Instructions
