Warn XT17 Portable Winch - Controls on Vehicle - 85900

Item # : 175570

Processing Time: Leaves our warehouse in 2 to 3 days.

List : $772.19

$709.00

8% off

Please enter a valid email.
Signing up...
Thanks! We will notify you by email when this item is back in stock.
  • Free Shipping on orders over $49*
  • Canada
  • Easy Returns
  • SSL Secure

Specs

  • Manufacturer: Warn

Videos

Details

Warn XT17 Portable Winch - Controls on Vehicle

  • Lightweight, portable winch is well-suited for light ATV or motorcycle recovery
  • Kit includes everything needed to winch from any battery-equipped vehicle
  • (load strap or tree trunk protector is sold separately)
  • Rigging system allows mounting of winch to any vehicle or stable structure.
  • No application-specific hardware is needed
  • Features 1,700 lbs. of pulling capacity, and 40 feet (12.19m) of easy-to-handle synthetic rope
  • PN 85700 includes hand-held corded remote, rigging strap and wiring. Easily transferable between vehicles
  • PN 85900 (this item) includes handlebar-mounted winch control with rigging strap and wiring
  • Patented disc brake for reliable stopping power
  • Sealed motor provides protection from extreme weather conditions
  • Clutch control provides rope free-spool capability
  • Limited Lifetime Warranty (North America only)

XT17 SPECS
  • Part Number: 85700 (Controls on winch)
  • Part Number: 85900 (Controls on vehicle)
  • Rated line pull: 1,700 lbs. (771 kgs) single-line
  • Motor: 12V DC, .4 hp (.3kW) permanent magnet
  • Control:
  • PN 85700 - corded remote control with 10' (3m) lead
  • PN 85900 - handlebar mounted rocker switch
  • Geartrain: 3-Stage Planetary
  • Gear ratio: 112:1
  • Clutch (freespooling): Cam activated
  • Brake: Mechanical brake standard
  • Rope: Synthetic, 40' of 5/32" diameter (12.2m, 4mm diam.)
  • Fairlead: Hawse
  • Recommended Battery: 12 amp/hour minimum for winching
  • Battery leads: 10 gauge
  • Duty cycle: Intermittent
  • Finish: Black
  • Weight: 9 lbs./4.08 kgs (winch and rope only)

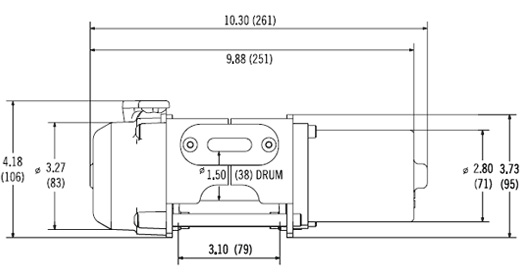

  • Dimensions: 10.3" L. x 4.0" D. x 4.2" H. (26cm L. x 10cm D. x 10.7cm H.)
