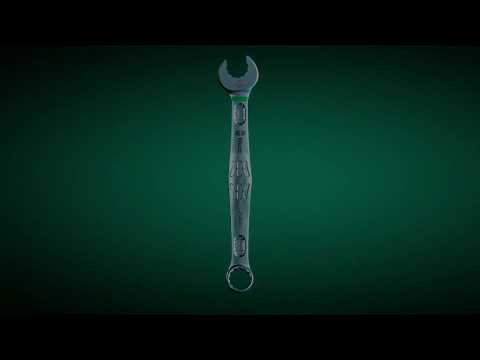

Wera 6003 Joker Combination Wrench Item # 850703
Description
As the installation space becomes increasingly tight during screwdriving, tools are necessary that enable users to work successfully even in such situations. Narrow spaces require additional placement points of the tool. Can spanners be modified so that the placement possibilities of the tool increase? The combination of the 7.5° pivoted mouth and the double hexagon geometry doubles the placement points. A repeated 180° turn of the wrench around the longitudinal axis during screwdriving provides four placement possibilities, and bolts or screw heads can be engaged every 15°. The Joker 6003 with its smart mouth geometry significantly expands the range of uses in confined spaces. The Joker 6003 will automatically find the respective placement point after every turn. The slim yet robust ring side is angled by 15° to the tool axis. The high-quality surface treatment achieves a high and long-lasting corrosion protection. With tool finder Take it easy: colour coding by size.
Features:
- Especially suitable for tight spaces
- The special mouth geometry expands the placement possibilities of the tool
- The low return angle in the mouth "takes" the screw every 15°
- Slim ring side with 15° crank
- With Take it easy tool finder: colour coding by size
Includes:
| Wrench Size (mm) | Total Length (mm) | External Dimensions (B) Mouth (mm) | Head Thickness (mm) | External Dimension (B1) - Ratchet Wrench (mm) | Max. Head Height - Ratchet Wrench (mm) |
|---|---|---|---|---|---|
| 6 | 105 | 16 | 4 | 10 | 6 |
| 7 | 110 | 17.7 | 4.2 | 11.5 | 6 |
| 8 | 115 | 19 | 4.5 | 12.5 | 7 |
| 9 | 120 | 21 | 4.8 | 13.5 | 7 |
| 10 | 125 | 22 | 5 | 15 | 7 |
| 12 | 148 | 26 | 5.5 | 18 | 8.5 |
| 13 | 160 | 27 | 6 | 19 | 8.5 |
| 14 | 167 | 29 | 6 | 20 | 8.5 |
| 15 | 174 | 32 | 6 | 22 | 8.5 |
| 16 | 182 | 35 | 6.5 | 23 | 10 |
| 17 | 190 | 38 | 6.5 | 24.5 | 10 |
| 18 | 210 | 39 | 7.5 | 26 | 11.5 |
| 19 | 230 | 42 | 7.5 | 27.5 | 11.5 |
