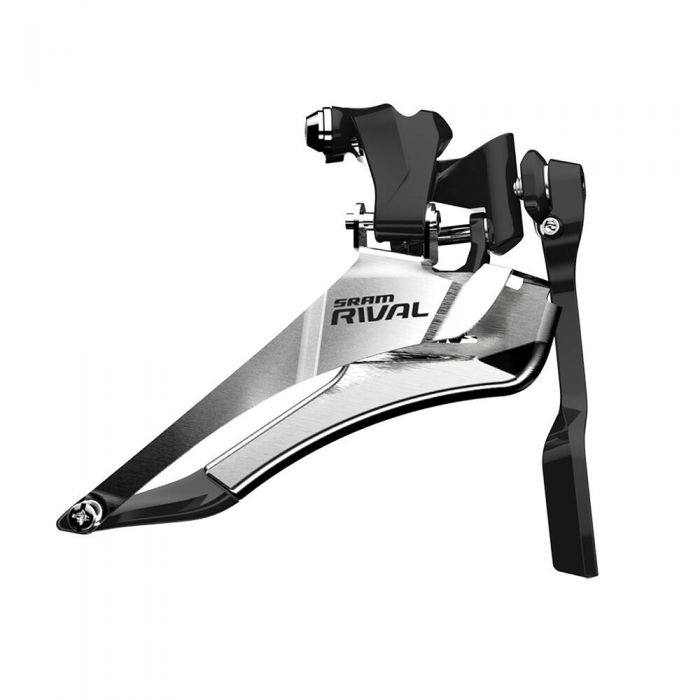

SRAM Rival 22 Yaw Front Derailleur - 00.7618.058.000

The SRAM Rival 22 groupset delivers immense performance across a broad variety of bikes and disciplines. Paved or not. Cyclocross or triathlon. Road racing or unchartered journeys. Rival 22 provides the tools and technology to meet each challenge and expand your limits.

Features:

• SRAM Road 11-speed Yaw compatible
• Braze-on and clamp styles available
• Yaw cage rotates in line with chain, improving the shifting speed and precision while eliminating the need for shifter trim.
• Integrated chain spotter protects your frame, and installs and adjusts independently of the derailleur itself.
• Precision alignment markings on the cage.

Technology:

• Yaw: With a front derailleur cage that rotates to maintain a consistent angular relationship with the chain, Yaw technology eliminates the need for shifter trim. As a result, shifts feel more direct and precise, delivering an unmatched performance advantage in front shifting.

Specifications:

• Model ID: FD-RIV-B1
• Model Name: FD-Rival-B1
• Cable routing: Bottom pull
• Compatibility - Chainring (FD):
  • Road
  • Road-Yaw
• Speed (FD):
  • 2x11
  • 2x11 YAW
• Mounting type (FD):
  • Braze-on
  • Clamp-High
• Color (FD): Black
• Chainstay Angle: 61-66 degrees
• Clamp size (FD):
  • 31.8 mm
  • 34.9 mm
• Weight Based On: w/chainspotter

User Manual (14.07 MB)

SRAM 22 Derailleurs User Manual (6.69 MB)
